GENESYS ZU-5EV ZYNQ Ultrascale+ MPSoC Development Board

Stok Kodu
410-383-3EV
81.131,40 TL
Kategori
FPGA & SoC
Marka
DIGILENT
Fiyat
2.055,00 USD + KDV
Digilent Son Kullanıcı Bilgi Formu
*
TAKSİT SEÇENEKLERİ
Ürün Bilgisi
Ürün Bilgisi

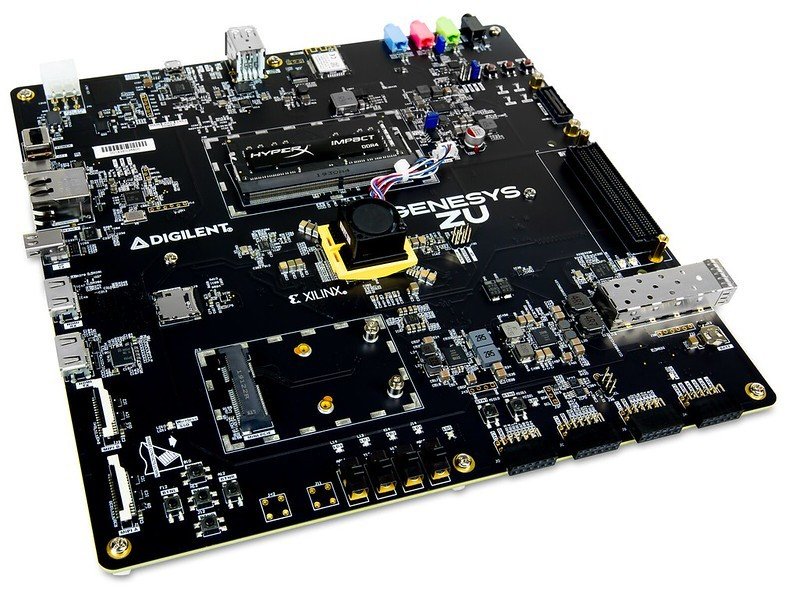

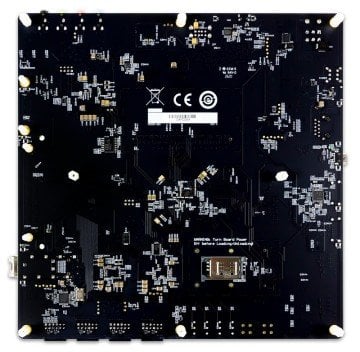

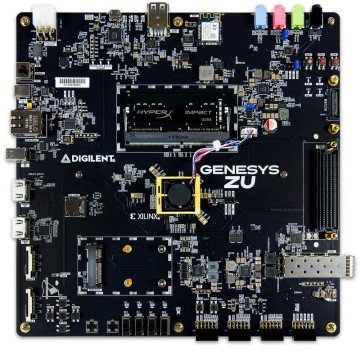

GENESYS ZU-5EV

Zynq Ultrascale+ MPSoC DEVELOPMENT BOARD

P/N:410-383-5EV


The Genesys ZU-5EV is designed with high-definition video in mind, and is ideal for multimedia,
automotive ADAS, surveillance, and other embedded vision applications. The board features a Xilinx Zynq® UltraScale+™
MPSoC (Multi-Processing System on Chip) EV device. The ZU5EV is equipped with a quad-core Arm® Cortex®-A53 applications
processor, dual-core Cortex-R5 real-time processor, Mali™-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265
video codec, and 16nm FinFET+ programmable logic.
The excellent mix of on-board peripherals, upgrade-friendly DDR4, Mini PCIe and microSD slots, multi-camera, a video codec,
and GTH transceivers allowing HDMI Source, Sink and 10G SFP+ to support a wide number of use-cases. Different
specialized ports, including FMC Gigabit expansion ports, Pmod and high-speed SYZYGY-compliant expansion module ports for our new Zmods, enable flexible expansion and easy access to a wide ecosystem of add-on modules, perfect for silicon
evaluation and rapid prototyping.

Features
XCZU5EV-SFVC784-1-E (with heat sink and fan)
  • Quad-core ARM® Cortex-A53 Application Processing Unit
  • Dual-core ARM® Cortex-R5 Real-Time Processing Unit
  • Mali-400 MP2 graphics processing unit
  • 256K logic cells

Memory:

  • 4 GiB DDR4 SODIMM module
  • ISSI 256 MB SNOR Flash
  • MicroSD Card Slot

Peripheral connectivity:

  • USB Type-C 3.1 Gen1 Dual-Role Device
  • MiniPCIe / mSATA dual slot
  • USB 2.0 Host
  • Network connectivity:
  • 2.4 GHz on-board WiFi
  • 1G w/IEEE 1588 Ethernet
  • SIM card slot
  • WLAN/WWAN/LoRa: option – MiniPCIe
  • SFP+ 10G Ethernet

Multimedia:

  • 1.2a Dual-Lane Display Port
  • 2x Pcam Dual-Lane
  • Audio Codec
  • H.264/H.265
  • HDMI Source
  • HDMI Sink

Expansion:

  • 1x FMC expansion connector
  • 1 x FMC Gigabit
  • 1x SYZYGY port
  • 4x Pmod ports

GPIO:

  • LED, Buttons, Switches

Kits include

  • Power Supply, Desktop, 12V, 8A, w/PCIE Connector
  • IEC cable, US, 1.2 meter
  • IEC cable, EU, 1.2 meter
  • USB A TO MICRO B CABLE
  • Cable, USB, A to Type C, 15CM
  • JTAG HS1
  • Voucher for the Xilinx MIPI CSI-2 IP cores


Target Applications
XCZU5EV-SFVC784-1-E (with heat sink and fan)
  • Situational Awareness
  • Surveillance/Reconnaissance
  • Smart Vision
  • Image Manipulation
  • Graphic Overlay
  • Human Machine Interface
  • Automotive ADAS
  • Video Processing
  • Interactive Display
