Endüstriyel PC EPC-A72-101
Paylaş

Endüstriyel PC EPC-A72-101

Stok Kodu
EPC-A72-101
12.708,96 TL
Kategori
KART TİPİ
Marka
Chipsee
Fiyat
319,00 USD + KDV
TAKSİT SEÇENEKLERİ
Ürün Bilgisi
Ürün Bilgisi

EPC-A72-101

P/N: CS12800R101E


This product features the Rockchip RK3399, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) high performance and ultra-efficient processor that implements the ARM v8-A architecture.



The EPC-A72-101 (PN CS12800R101E) is a high-quality industrial embedded computer, that features a 10.1 inch LCD with a ten-point capacitive touchscreen, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) processor with 4GB DDR3 RAM and 16GB eMMC Flash, 1Gb Ethernet, 2 USB 2.0 ports, 1 USB 3.0 port, 1 Type-C port, 1 LAN port, 5 RS232 connectors, and 2 RS485 connectors, as well as a 3.5mm audio connector.









    Hardware Features

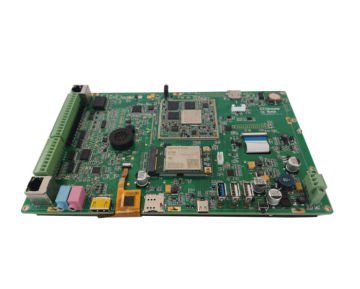

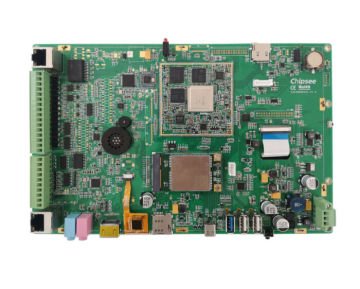

  • The EPC-A72-101 has several expansion connectors on the backside – 2 USB 2.0 connectors, 1 USB 3.0 connector, 1 Type-C connector, 1 LAN connector, 5 RS232 connectors, and 2 RS485 connectors. It also features a 3.5mm audio connector and a TF card slot.

  • The WiFi/Bluetooth module is based on the Realtek RTL8723BU an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and a network USB interface (USB 1.0/1.1/2.0 compatible) controller with integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.

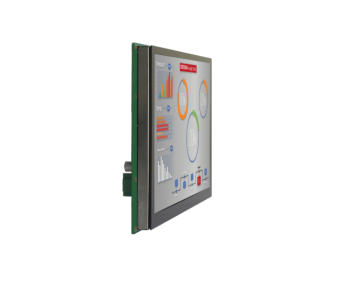

  • The EPC-A72-101 has a 10.1’’ 10-point capacitive touch screen, with a 1200×800 resolution. 10-point capacitive touchscreens offer stable and accurate control over the device.

  • Capacitive touchscreens offer great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.

  • The RS485 and RS232 connectors are DB9 connectors (as you can see from the image).

  • The speed of the RS232 and the RS485 port is up to 115200 Baud.

  • The EPC-A72-101 has one channel 1Gb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.

  • When it comes to audio capabilities, the EPC-A72-101 has one 3.5mm Output/Input connector and a 2W internal speaker.

  • The typical power consumption is 7.5W.











Performances and reliability

This product features the Rockchip RK3399, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) high performance and ultra-efficient processor that implements the ARM v8-A architecture. The fast processing of Cortex-A72 is particularly suited to mobile applications.



This processor supports the following features: advanced single instruction multiple data (SIMD) operations, floating-point operations, and optional cryptography extension.









Multiple OS choices



This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.



It supports the following operating systems:
  • Android 7.1
  • Buildroot Linux Qt 5.14
  • Debian 10

    •









    Chipsee Linux is based on NXP Yocto framework that we have integrated with:
    • A Chipsee Hardware Test Application.

    • An initialization script for GPIO/Buzzer/Audio.

    • Multiple libraries, such as the libQt5Sql to develop Qt application with SQL.

    • Various packages, such as the ntfs-3g to use NTFS.

    Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.







    Technical Features



    Weight 600 g
    Dimensions 245 × 155 × 11 mm
    Form-factor Embedded
    Display Size (inch.) 10.1"
    CPU ARM Cortex A72: Rockchip RK3399
    RAM 4GB DDR3
    FLASH 16GB
    External storage TF (microSD) Card Slot
    Resolution 1280*800
    Brightness (NIT) 250 NIT
    Touch Screen Capacitive
    Bluetooth Onboard Bluetooth
    WiFi Onboard WiFi
    4G Onboard 4G / Optional
    Ethernet 1x LAN 1000M
    USB 1x USB 3.0 HOST, 1x USB Type-C, 1x USB 2.0 HOST
    GPIO Optional
    RS232 3 x RS232
    RS485 2 x RS485
    Buzzer Yes
    Power Consumption 7.5W
    Power Input 15~36V DC
    Working Temperature -20°C ~ 70°C.
    Mounting Method Embedded Mounting







    Documentation and Downloads



    Hardware Documentation For More Information
