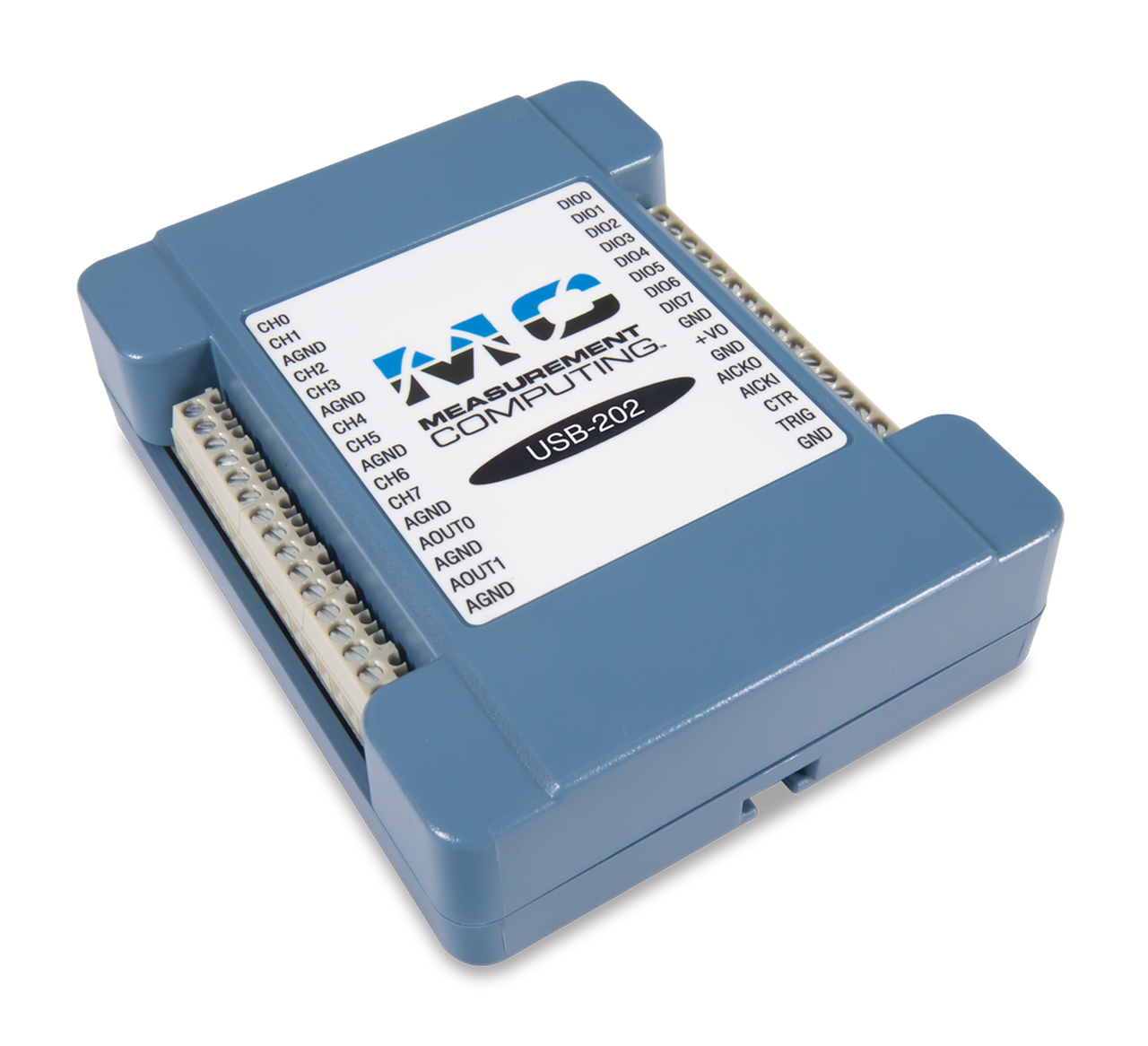

MCC USB-202 DAQ
MCC USB-202

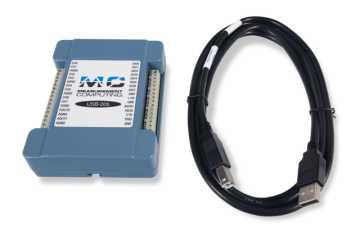

Measurement Computing USB-202 and USB-205 are low-cost, USB-based multifunction DAQ devices designed for general purpose data acquisition applications. Each device features eight, 12-bit SE analog voltage inputs, two analog outputs, eight digital I/O, and one counter input. The USB-202 features a maximum 100 kS/s sample rate, while the USB-205 offers a 500 kS/s sample rate. The analog input range is fixed at ±10 V. These devices are USB-powered and require no external power.
The USB-202 and USB-205 feature two 12-bit analog output channels. Both outputs can be updated simultaneously at a rate up to 125 S/s per channel. One output can be updated at a rate up to 250 S/s. The output range is fixed at 0 V to 5 V. Each USB-200 Series device provides one external clock input and one clock output for the analog input pacer. Users can connect an external clock signal to the external clock input terminal. When using the internal clock, each device outputs the ADC sample clock.
These devices also provide eight TTL-level digital I/O lines. Each digital channel is software-selectable for input or output. When configured for output, each digital channel can source/ sink up to ±24 mA. Each USB-200 Series device supports one 32-bit TTL-level event counter that accepts inputs up to 1 MHz.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Features
|
Other Models of USB-200 Series
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
