Multi Touch Display Shield - MTDS
Multi Touch Display Shield
MTDS
P/N:410-317

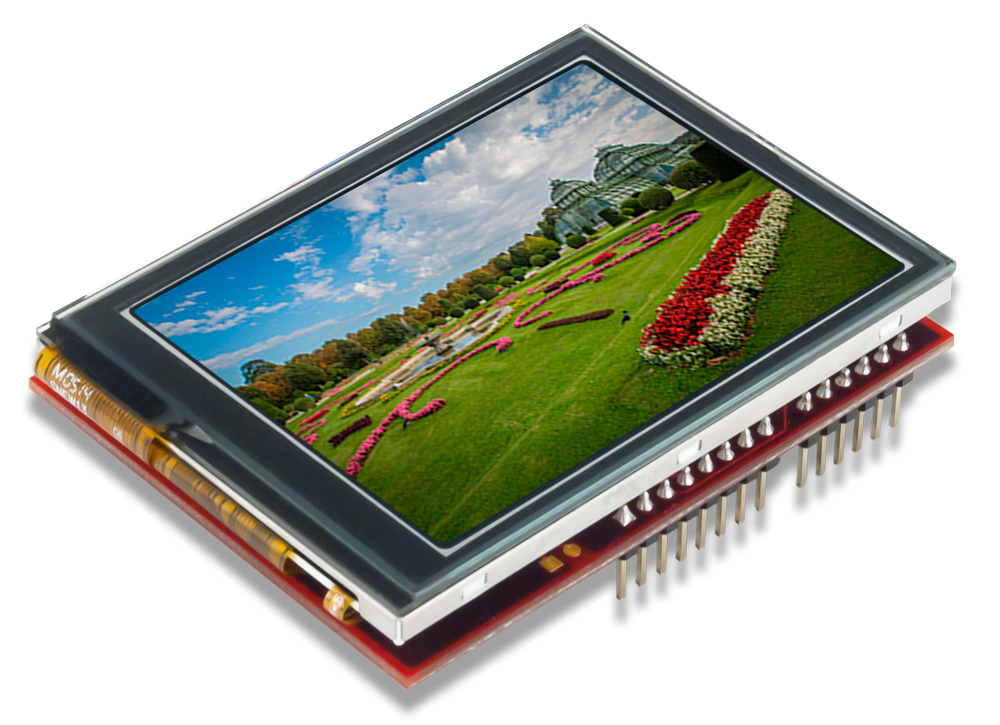

The Digilent Multi-Touch Display Shield is a gorgeous 2.8" touchscreen display with a powerful on-board PIC 32 MZ microcontroller that performs graphics processing tasks. The display is a capacitive touchscreen with QVGA resolution (320×240) and 2 finger multi-touch support. The Multi-Touch Display System (MTDS) Firmware and the associated libraries allow users to design sleek, stylish user interfaces very quickly and effectively. The timing dependent tasks are handled by the firmware, so integrating the display into existing projects is also a snap. The key functionality provided by the libraries include the ability to draw basic shapes and text, draw images stored on microSD with binary transparency, draw buttons and easily check if they have been pressed, and check the status and location of the user's two fingers. The MTDS has been tested with Arduino, chipKIT, and Arty host boards
Features
2.8" Display with QVGA resolution (320×240)
2 Finger Capacitive touch panel
Controlled by PIC 32MZ
Free Multi-Touch Display System (MTDS) firmware/library for Arduino IDE
Easily draw images with binary transparency from files stored on microSD
Compatible to Arduino, chipKIT, and Arty host boards
