12V Selenoid Valf 1/2'' Nominal - Giriş Valfi
Stok Kodu
234.06.02
159,36 TL
Kategori
Fiyat
4,00 USD + KDV

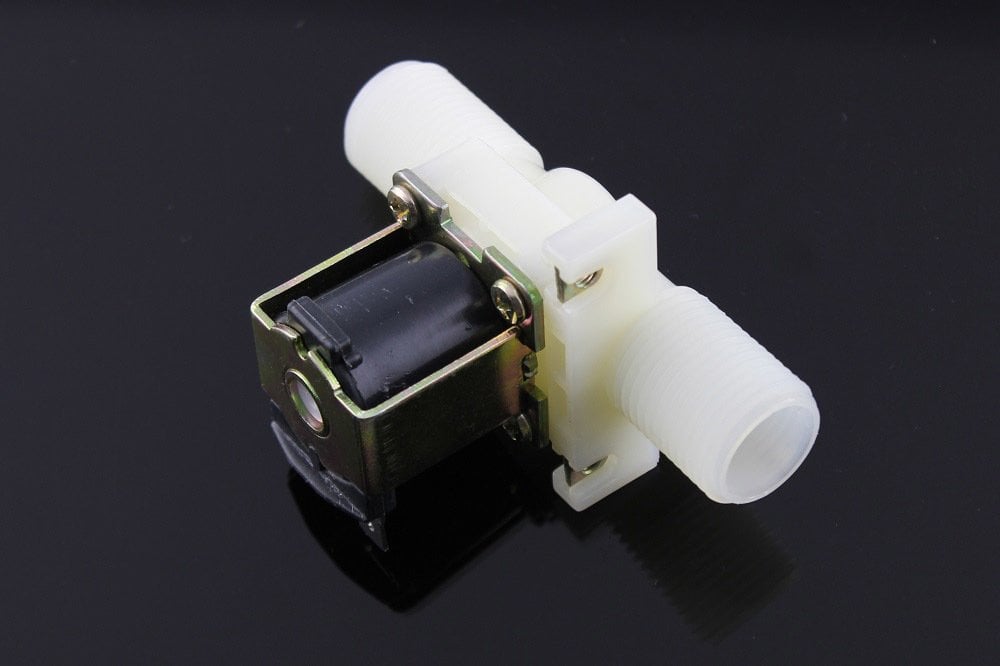

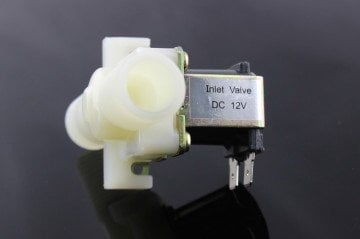

Plastic Water Solenoid Valve- 12V- 1/2" Nominal
SELENOİD VALF
SU VE BENZER SIVILAR İÇİN
PLASTİK GÖVDELİ
DC 12V
GİRİŞ VALFİ (BESLEME GELDİĞİNDE AÇILIR BASINCA GÖRE GEÇİŞ SAĞLAR)
NORMALDE KAPALI
This solenoid valve helps users control the flow of water. It would make a great addition to the robotic gardening projects. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. Notice that the liquid can only flow one direction.
There are 2 kinds of this solenoid valve for your selection. The "Inlet Valve” has working pressure 0.02 Mpa – 0.8 Mpa, used for water influent, while the "Drainage Valve” 0-0.2 Mpa, used for Drainage. Please select the right one you need.
There are 2 kinds of this solenoid valve for your selection. The "Inlet Valve” has working pressure 0.02 Mpa – 0.8 Mpa, used for water influent, while the "Drainage Valve” 0-0.2 Mpa, used for Drainage. Please select the right one you need.
Specification
- 1/2" Nominal NPS
- Material: Plastic
- Working Pressure: Inlet Valve: 0.02 Mpa - 0.8 Mpa;
- Working Temperature: 1 ℃ - 75 ℃
- Response time (open): ≤ 0.15 sec
- Response time (close): ≤ 0.3 sec
- Actuating voltage: 12VDC (but we found it would work down to 6V)
-
Actuating current ：400mA
- Actuating life: ≥ 50 million cycles
- Weight: 4.3 oz
- Dimensions: 3" x 2.25" x 2"
