R2R DAC Board
Stok Kodu
250.06.03
412,34 TL
R2R DAC Board

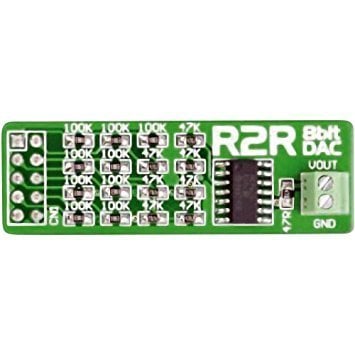

The R/2R ladder DAC is an 8-bit Digital to Analog Converter. An 8-bit value from the microcontroller port will be converted into an equivalent analog voltage by means of the R/2R resistor network. The R/2R ladder DAC makes use of only two resistor values, but it requires 2N resistors to implement the N-bit conversion. The resistor values are in the ratio of 1:2. The R/2R DAC board output is provided with the MCP6284 operational amplifier used as a buffer in order to drive loads with current consumption of up to 20mA.
The R/2R ladder DAC is an 8-bit Digital to Analog Converter. An 8-bit value from the microcontroller port will be converted into an equivalent analog voltage by means of the R/2R resistor network. The R/2R ladder DAC makes use of only two resistor values, but it requires 2N resistors to implement the N-bit conversion. The resistor values are in the ratio of 1:2. The R/2R DAC board output is provided with the MCP6284 operational amplifier used as a buffer in order to drive loads with current consumption of up to 20mA.
