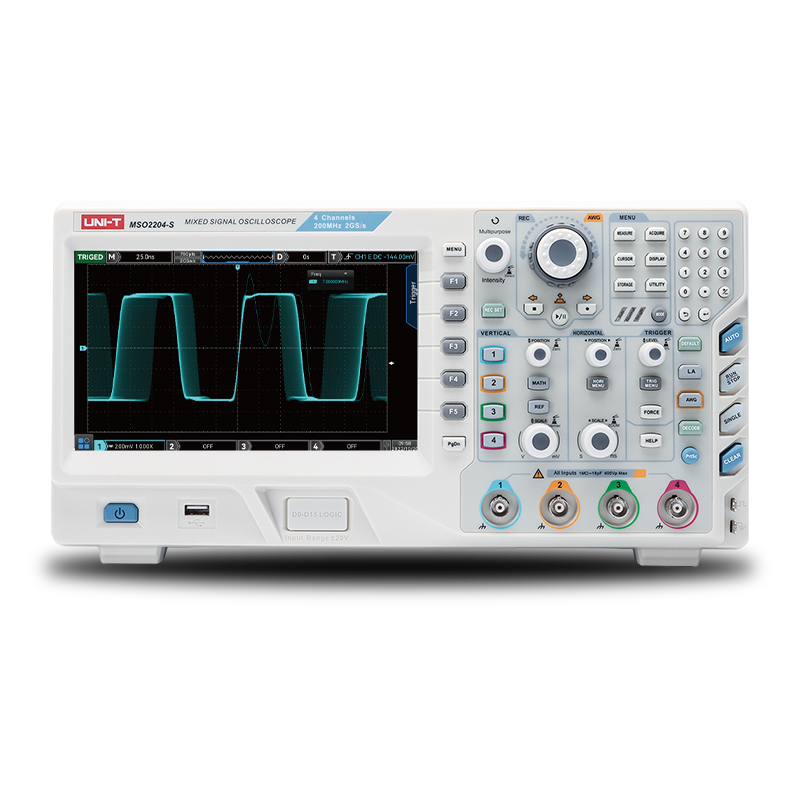

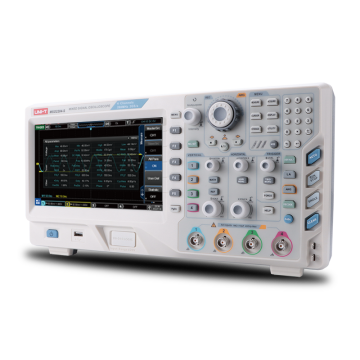

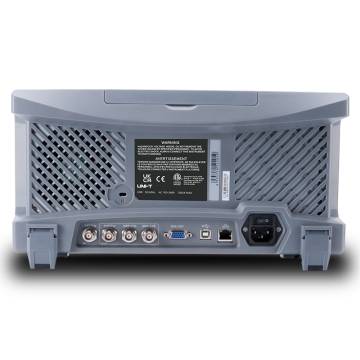

Unit MSO2204-S 200Mhz Dijital Osiloskop
Stok Kodu
MSO2204-S
83.511,41 TL
Unit UPO2102 200Mhz Dijital Osiloskop
4M pts enhanced FFT
- It supports full screen / split screen / waterfall chart and multiple detections. It can provide users with fast and rich frequency domain measurement information.
Web Control
- The oscilloscope can be accessed through the web page, saving the trouble of installing the upper computer software. Support PC and mobile phone dual platform control. Remote operation is more flexible and comfortable.
LA Logic Analyzer
- Can be used for parallel bus, protocol decoding and timing measurements.
Bode plot
- Can be used for loop analysis. It is a critical measurement often used to characterize the frequency response (gain, phase, and frequency) of today's various electronic designs, including passive filters, amplifier circuits, and negative feedback networks for switch-mode power supplies.
AWG Function Arbitrary Waveform Generator
- The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC. The maximum frequency output of sine wave is 50MHz.
Area trigger
- The area trigger can be used in combination with the existing basic trigger, advanced trigger and protocol trigger to complete the capture of various occasional and complex characteristic signals.
Full memory hardware decoding
- The decoding speed is greatly improved. The full-memory hardware decoding under the deep storage of 56Mpts, the decoding time is increased from more than ten seconds to milliseconds, which realizes real-time decoding and greatly improves the user's problem diagnosis efficiency. The recorded waveform also supports full-memory hardware real-time decoding.
Rich trigger function
- With a wealth of advanced trigger and bus trigger functions, it can help users accurately and quickly capture and display the signal of interest.
Memory depth 56Mpts per channel
- The oscilloscope can maintain a high sampling rate in a wider time base range, while taking into account the overall and details of the waveform, greatly improving the capture rate of abnormal waveforms.
Channel split screen function
- Using the original Multi-Scopes technology, the waveform display is more user-friendly, which is convenient for users to experience and analyze waveform details
256-level grayscale display
- Using the original Ultra Phosphor display technology, you can observe the accumulated effect for a long time, which is convenient for displaying waveform details and occasional abnormalities.
Ultra high capture rate
- Using innovative digital signal parallel processing technology, it can reach an ultra-high capture rate of 200,000wfms/s in normal sampling and 1,000,000 wfms/s in Fast Acquire mode. Efficient capture of occasional signals.
XY mode
- XY mode cursor measurement can quickly measure the phase difference between two signals. s
Rich measurement functions
- Automatic parameter measurement up to 36 kinds. Provides a variety of automatic measurement parameters while you measure waveforms, greatly improving your measurement efficiency.
Brand new interactive experience
- The 8-inch touch screen design supports a variety of gesture operations, such as click, slide, zoom, edit, drag, etc. Make the measurement action smoother and more convenient, and users can master it more quickly. At the same time, the traditional button and knob operation is still retained, and the interactive experience is optimized to the greatest extent.
