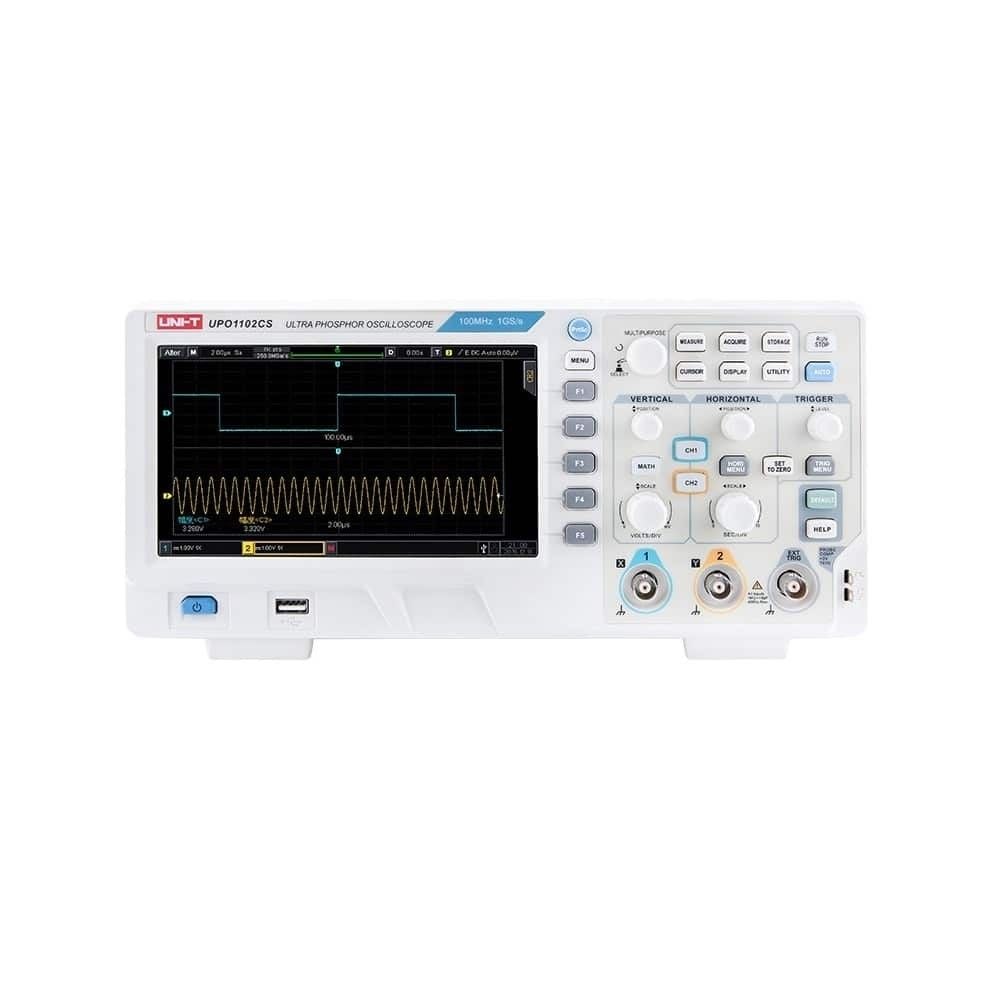

Unit UPO1102CS 100Mhz Dijital Osiloskop
Stok Kodu
UPO1102CS
15.051,15 TL
Unit UTD2102CL 100Mhz Dijital Osiloskop
Web Control
- The oscilloscope can be connected and remotely controlled via the web page. Support PC and mobile phone dual platform operation. This eliminates the need to install local programs, saving space and time.
1Mpts FFT sampling point
- UPO1000CS series has 1Mpts FFT sampling points. It can also set the practical functions of spectrum analyzer such as frequency range, detection mode and spectrum marking. It is convenient for you to analyze the signal in frequency domain on oscilloscope.
Multi-Scopes
- Signals with different clock sources and large frequency difference can also display the waveform stably on the screen, which is convenient for customers to analyze the waveform parameters.
Serial bus trigger and hardware decoding
- Innovative hardware decoding realizes real-time decoding. The decoding speed with deep storage 56Mpts realizes the millisecond level, which solves the problem of long-time waiting for viewing decoded data. The decoding will not affect the refresh speed of the waveform, and the waveform has the effect of digital fluorescence display. The event list can display the decoded data with deep storage and the time of the packet. These improved technologies will help you better test the serial bus.
Deep storage depth
- UPO1000CS series 56M sampling points per channel. This enables the oscilloscope to maintain high sampling rate in a wider time base range, At the same time considering the whole and details of the waveform, which greatly improves the ability to capture abnormal waveforms.
Ultra high capture rate
- UPO1000CS series adopts innovative digital signal parallel processing technology. It has a very high capture rate in its peer products. Effectively reduce signal loss and help you better capture abnormal signals.
256 gray level display
- The original Ultra Phosphor display technology is easy to obtain more waveform information and detailed observation.
