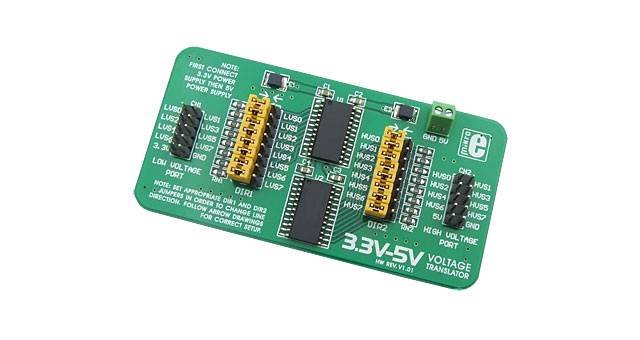

3.3V-5V TRANSLATOR BOARD

If you need to use your 3.3V prototype device in 5V voltage systems than the 3.3V-5V Voltage Translator Board is the best solution for you.

The board features a bidirectional voltage translator LVCC3245A.

LVCC3245A is manufactured in advanced dual metal CMOS technology. This 8-bit (octal) non-inverting bus transceiver contains two separate supply rails that allow transition from a 3.3V to 5V system environment. This bus transceiver is ideal for asynchronous communication between two data buses (A and B). It transmits data from A to B or vice versa, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device, thus isolating the buses effectively.
