Stok Kodu : A.02.02.07

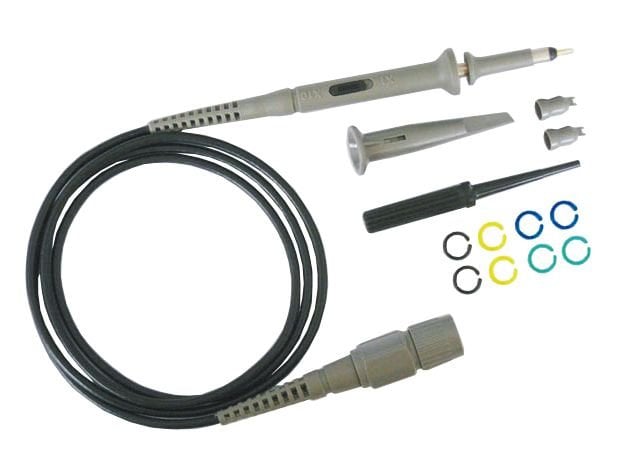

60MHZ OSİLOSKOP PROBU
510,62 TL
OSİLOSKOP PROBU
60 Mhz. x1/x10
P/N: PTL938-60
PROBE Feature
Bandwidth up to 60MHz
With color cable marker rings
Meet IEC-1010, 600Vpp, CATIII
Bandwidth up to 60MHz
With color cable marker rings
Meet IEC-1010, 600Vpp, CATIII
| Specifications | PTL-938-20 | PTL-938-40 | PTL-938-60 | PTL-938-100 | PTL-938-200 |
| Attenuator | X1/X10 | ||||
| System Rise-time(ns) |
≤17.5ns | ≤8.75ns | ≤5.8ns | ≤3.5ns | ≤1.75ns |
| System Bandwidth (3dB)MHz | X1: DC-6MHz | X1: DC-6MHz | X1: DC-6MHz | X1: DC-6MHz | X1: DC-6MHz |
| X10: DC-20MHz | X10: DC-40MHz | X10: DC-60MHz | X10: DC-100MHz | X10: DC-200MHz | |
| Voltage Max. | X1: 300V (DC + Peak AC) | ||||
| X10: 600V (DC + Peak AC) | |||||
| Compensation range(pf) | 15~45/10~35 | ||||
| Input Res.(Mohm) | 1/10 | ||||
| Input Cap.(Pf) | X1: 85pF~120pF | ||||
| X10: 18.5pF~22.5pF | |||||
| Cable length | 120cm | 120cm | |||
