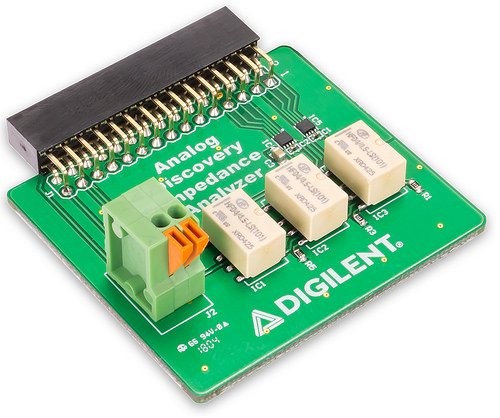

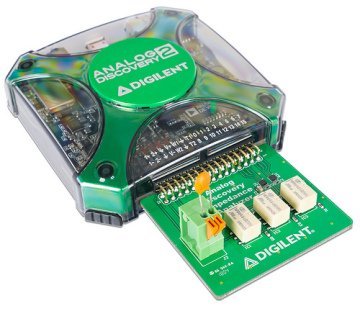

The Impedance Analyzer for Analog Discovery was designed with automatically adjusting reference resistors and relays to aid in use of the Impedance Analyzer tool in WaveForms. With the Impedance Analyzer accessory, the Analog Discovery will automatically select the most appropriate configuration for the attached unknown impedance. The Impedance Analyzer is loaded with the 2×15 Analog Discovery connector, which makes it compatible with Analog Discovery 2 as well as Analog Discovery Legacy.

2-wire Impedance Analyzer integrates with the Impedance Analyzer tool in WaveForms

50pF - 500μF Capacitance Measurement Range

10μH - 1000mH Inductance Measurement Range

1Hz - 15MHz Excitation Frequency Range

TEKNİK DOKÜMAN           EMPEDANS ANALİZÖRÜ KULLANIMI
