Analog Discovery Studio Max
Analog Discovery Studio Max

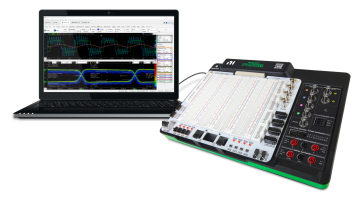

The Analog Discovery Studio Max (ADS Max) is a comprehensive electronics laboratory solution designed for academic instruction and hands-on learning. Equipped with 14 built-in instruments, supporting everything from a multimeter and bode plots to digital protocol generation and analysis, the ADS Max is ideal for circuit design, signal analysis, and embedded systems coursework. With a variety of removable and curriculum tailored Canvas boards to enhance its functionality, the ADS Max enables dynamic, hands-on experiences in both classroom and remote learning environments.
One of the standout features of the ADS Max is its ability to facilitate seamless circuit prototyping. The device includes integrated power supplies and a breadboardable interface, enabling students to easily design and test circuits. This functionality is particularly beneficial for courses focused on circuit design, signal analysis, and embedded systems, where students can experiment with real-world applications and gain a deeper understanding of engineering principles.
The ADS Max is also designed to support a wide range of learning environments, from traditional classrooms and laboratories to remote learning setups. Its compact and comprehensive nature makes it ideal for students working from home or in limited lab spaces.
WaveForms is the free software application for the ADS Max and enables use of the available analog and digital instruments. The hardware device communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms offers prebuilt instrument panels for immediate use, while APIs for LabVIEW, C, and Python allow for custom software development, providing flexibility for both instructors and students.
| Specifications | ADS Max | AD Studio |
|---|---|---|
| Oscilloscope | 4 ch, 100 MS/s, 14 bits | 2 ch, 100 MS/s, 14 bits |
| Arbitrary Waveform Generator | 2 ch, 100 MS/s, 14 bits | 2 ch, 100 MS/s, 14 bits |
| Logic Analyzer / Pattern Generator | 16 digital input/output channels, 100 MS/s | 16 digital input/output channels, 100 MS/s |
| DMM | Yes, 4.5 digits | NO |
| IV Analyzer | Yes, ±10 V, 30 mA | NO |
| Variable Power Supplies | 1V to 15V (500 mA) -1V to -15V (-500 mA) |
1V to 5V (700 mA) -1V to -5V (-700 mA) |
| Fixed Power Rails | +15V (500 mA) +5V (2 A) +3.3V (500 mA) |
+12V (200 mA) +5V (1 A) +3.3V (1 A) |
| Digital I/O | 8 | NO |
Features
- All-in-One Design: Combines 14 essential test instruments, including an oscilloscope, waveform generator, and logic analyzer. Ideal for both in-classroom and remote learning environments.
- ADS Max Ecosystem: Extends the platform with subject-specific materials and hardware from academic partners.
- Breadboardable Interface: Allows for easy and quick circuit design and testing.
- Software Support: Compatible with Digilent WaveForms, LabVIEW, C, and Python for custom software development.
- Oscilloscope: 14-bit resolution, up to 100 MS/s sampling rate, 50 V peak-to-peak input range, 50 MHz bandwidth.
- Function Generator: 2 channels, 14-bit resolution, up to 100 MS/s, ±10 V output range.
- Programmable Power Supplies: Voltage ranges of ±15 V, ±5 V, ±3.3V; max current range of 500 mA at 15V, 2 A at 5V, 500 mA at 3.3V.
- Digital Multimeter (DMM): 4.5-digit resolution; DC voltage ranges of 50 mV, 500 mV, 5 V, and 50 V; AC voltage ranges of 50 mV RMS, 500 mV RMS, 5 V RMS, 30 V RMS; AC current range of 2 A RMS.
- Digital I/O: 16 channels for versatile digital signal interfacing, plus 8 in the Canvas Max connector.
Includes
- Analog Discovery Studio Max
- Breadboard Canvas Max
- 19 V 3.9 A power supply
- USB A to C cable
- Screwdriver
- Set of Analog Discovery Studio Max Flywire Cables
- Power cable and probe kit must be ordered separately (see below)
