Stok Kodu : 153.01.04.02

Arduino Nano USB + KABLO

361,69 TL
Kategori
Barkod
IM130615004
Fiyat
8,50 USD + KDV

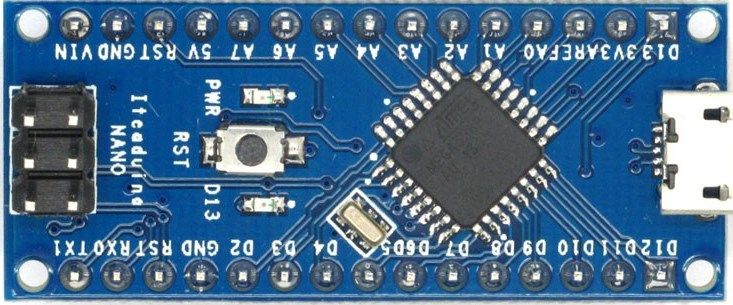

ARDUINO NANO + USB Kablo

Clone Ver.




Arduino Nano is a surface mount breadboard embedded version

with integrated USB. It is a small, complete, and breadboard friendly.

 It has everything that Diecimila/Duemilanove has (electrically)

with more analog input pins and onboard +5V AREF jumper.

Physically, it is missing the power jack.

The Nano will automatically sense and switch to the higher voltage

source of power, there is no need for the power select jumper.



Nano's got the breadboard-ability of the Boarduino and the

Mini+USB with smaller footprint than either, so users have more

 breadboard space. It's got a pin layout that works well with the

Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and

ground on the other).











Specifications:

Microcontroller

Atmel ATmega328

Operating Voltage(logic level)   5 V
Input Voltage(recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin   40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM   2 KB
EEPROM 1 KB
Clock Speed         16 MHz
Dimensions     0.70” x 1.70”





Features:



• Automatic reset during program download

• Power OK blue LED

• Green (TX), red (RX) and orange (L) LED

• Auto sensing/switching power input

• Small mini-B USB for programming and serial monitor

• ICSP header for direct program download

• Standard 0.1” spacing DIP (breadboard friendly)

• Manual reset switch





Power:



The Arduino Nano can be powered via the mini-B USB connection,

6-20V unregulated external power supply (pin 30), or 5V

regulated external power supply (pin 27).

The power source is automatically selected to the highest voltage source.



Documents:



Arduino Nano 3.0 Schematic

Arduino Nano 3.0 User Manual

(pinout and dimensions)

Eagle design files

ATmega328 datasheet

Arduino Home Page
