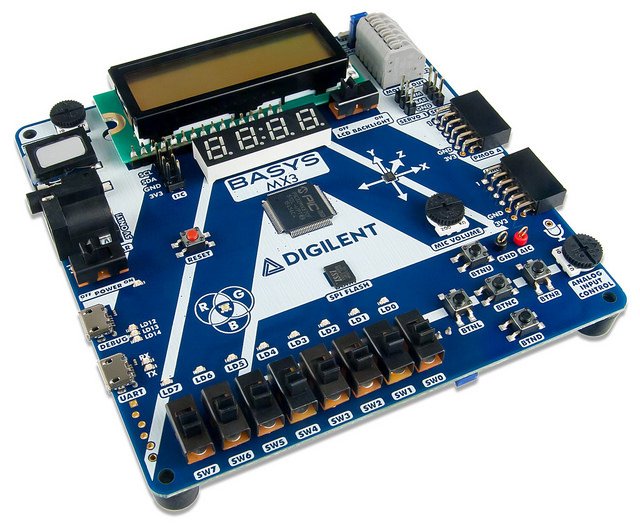

BASYS MX3 Pic32 Geliştirme Kartı

Processor/IC: Microchip PIC32MX370F512L Microcontroller

MIPS32® M4K® core runs up to 96 MHz using onboard 8 MHz oscillator

512 KB of Program Flash Memory

12KB of Boot Flash Memory

128 KB of SRAM

Four Direct Memory Access (DMA) Modules

Two SPI, Two I²C, and Five UART serial interfaces

Parallel Master Port (PMP) for graphics interfaces

Five 16-bit Timers/Counters

Five Input Capture Modules

Five Output Compare Modules

85 I/O pins

• 54 pins support Peripheral Pin Select (PPS) for function remapping

Software

• Designed for use with MPLAB X IDE

System Features

• 4 MB SPI Flash

• Onboard USB UART (USB Micro cable required, NOT INCLUDED)

  1. Supports baud rates up to 1.25 MBaud

• Powered from USB or 5 V external power source

  1. Standard barrel jack for 2.0 mm internal-diameter plug

  2. No jumper select required

System Connectivity

• USB-UART Bridge

Interaction and Sensory Devices

• 8 Slide Switches

• 5 Buttons

• 1 Reset Button

• 8 LEDs

• 1 RGB LED

• Onboard 3-axis, 12-bit accelerometer

  1. Programmable Motion Detection

  2. I2C Interface with Programmable Interrupt

• Onboard FIR-compatible IrDA Module

  1. Built-in Remote Control Transmission Function

  2. Supports speeds up to 4 Mbps

• Onboard Audio Input and Output

  1. MEMS Microphone with Adjustable Gain

     • Thumbwheel potentiometer for adjusting mic volume

  2. PWM driven mono audio output with onboard speaker

     • Thumbwheel potentiometer for adjusting speaker volume

     • 3.5 mm jack for line out connection to external amplifier/speaker system

• Onboard Displays

  1. 2x16 LCD Character Display with LED backlight

  2. 4-Digit Seven Segment Display with red LEDs

Motor Control

• Onboard Dual H-Bridge Motor Driver

  1. Supports up to two 1.5 A Brushed DC Motors or one stepper motor

  2. Supports motor voltages up to 11 V

  3. Terminal block provides easy connection to motors

• 2 Servo Connectors

Analog Input Control (AIC)

• Thumbwheel potentiometer for varying analog input between 0 to 3.3 V

• Two wire loops for ground and AIC

Expansion Connectors

• Two 2×6 Pmod host ports

  1. SPI, UART, GPIO, PWM, analog in

• Terminal block for two DC motors or one stepper motor

• Two R/C servo connectors

• One I²C connector

Debugging

• On-board 30-pin Analog Discovery 2 connector

• On-board USB programmer/debugger

  1. Program/debug the PIC32MX370 directly from MPLAB / MPLABX

Support

• 7 free and open-source teaching units complete with 15 labs

• Enough content to support one to two semesters of undergraduate embedded systems coursewors
