Stok Kodu : 103.04.01
BNC Osiloskop Probu 100Mhz (1 Çift)
1.108,06 TL

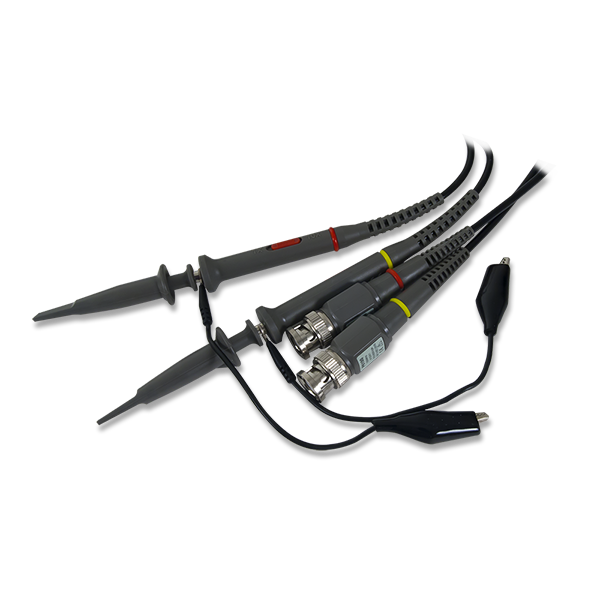

BNC Osiloskop Probu 100MHz
2x (1 Çift)
BNC Probes offer the best signal integrity and highest available bandwidth for connecting an Oscilloscope to a circuit under test and are the standard in the industry. This set of BNC probes features two BNC cables terminated by contraction hook type oscilloscope probes. Both cables are rated for 6 MHz at 1X attenuation, and 100MHz at 10x attenuation. This pair of BNC-terminated oscilloscope probes, has been selected for use with the Analog Discovery in conjunction with the BNC Adapter for the Analog Discovery or with the Analog Discovery Studio.
Features

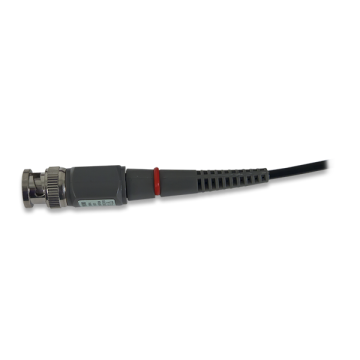

- BNC-terminated
- Selectable 1X/10X input attenuation
- Contraction hook tip
- 12cm ground clip
- Localization sleeve adapts to IC testing
- Input resistance:
- 1X: 1MΩ
- 10X: 10MΩ
- Input capacitance:
- 1X: 70pF – 120pF
- 10X: 13pF – 17pF
- Bandwidth:
- 1X: DC-6MHz
- 10X: DC-100MHz

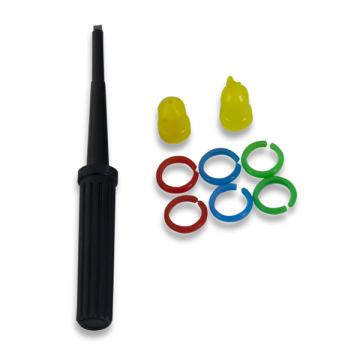

What's Included
- Pair of BNC oscilloscope probes
- Six plastic color bands
- Two plastic probe covers
- Two grounding clips
- One contraction hook clip
