Stok Kodu : 254.05.04.02
BTM-182 BLUETOOTH MODÜL
808,49 TL

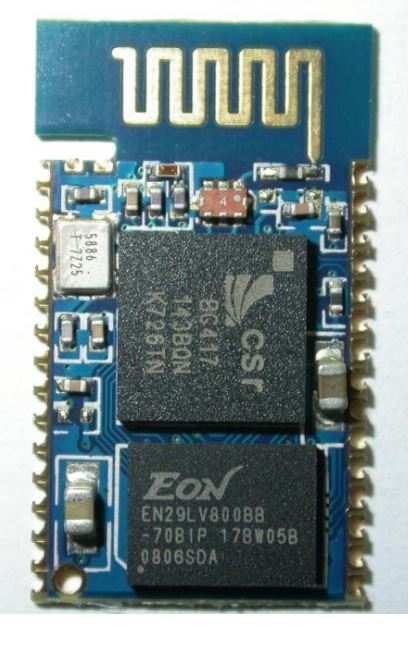

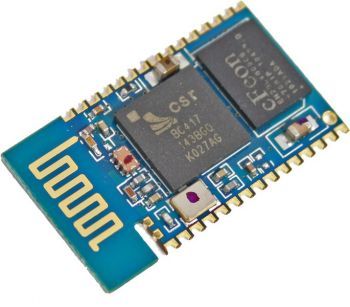

BTM-182 BLUETOOTH MODÜL
CLASS2 BC04-EXT MODÜL
FEATURES:
Class2 module with printed pcb antenna
Bluetooth standard Ver. 2.0 + EDR compliant.
Low current consumption : Hold,Sniff,Park,Deep sleep Mode
Supply Voltage:3.0V or 1.8V operation
Support for up to seven slaves : SCO links<3>,ACL links,Piconet<7>
Interface: USB,UART&PCM(for voice CODEC)
SPP/DUN/HID firmware is available
Support for 802.11 Co-Exsitence
RoHS compliant
Small outline. 25.0 x 14.5 x 2.2 mm
Class2 module with printed pcb antenna
Bluetooth standard Ver. 2.0 + EDR compliant.
Low current consumption : Hold,Sniff,Park,Deep sleep Mode
Supply Voltage:3.0V or 1.8V operation
Support for up to seven slaves : SCO links<3>,ACL links,Piconet<7>
Interface: USB,UART&PCM(for voice CODEC)
SPP/DUN/HID firmware is available
Support for 802.11 Co-Exsitence
RoHS compliant
Small outline. 25.0 x 14.5 x 2.2 mm
APPLİCATİONS:
PDA
Presenter, Mouse, Keyboard
Digital camera & printer
GPS,POS, Barcode Reader
Data collector
Domestic and industrial applications
PDA
Presenter, Mouse, Keyboard
Digital camera & printer
GPS,POS, Barcode Reader
Data collector
Domestic and industrial applications
