Stok Kodu : MIKROE-2627
CAN Isolator Click
2.142,00 TL
CAN Isolator Click
MIKROE-2627
CAN Isolator click provides isolated CAN communication. It carries the ADM3053 signal and power isolated CAN transceiver with an integrated isolated DC-to-DC converter, from Analog Devices. The click is designed to run on either 3.3V or 5V power supply. CAN Isolator click communicates with the target microcontroller over UART interface.

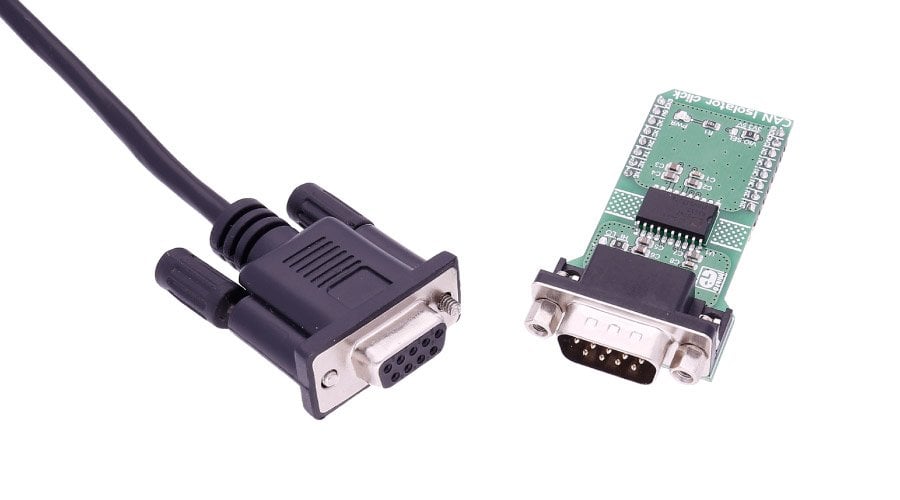

The click carries a DB 9-pin male connector.
ADM3053 FEATURES
The ADM3053 is an isolated controller area network (CAN) physical layer transceiver with an integrated isolated DC-to-DC converter. The ADM3053 creates a fully isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1 Mbps.
CONNECTOR FEATURES
This is a standard DB 9-pin male connector.
| Type | CAN |
| Applications | CAN data buses, Industrial field networks |
| On-board modules | ADM3053 CAN transceiver, DB 9-pin connector |
| Key Features | fully isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1 Mbps |
| Interface | UART |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
