chipKIT Wi-FiRE PIC32 IoT Geliştirme Kartı

Stok Kodu : 73.01.04.01

chipKIT Wi-FiRE PIC32 IoT Geliştirme Kartı

3.702,02 TL
Kategori
PIC32
Barkod
410-302
Fiyat
87,00 USD + KDV
SEPETE EKLE
HEMEN AL
Ürün Bilgisi
Ürün Bilgisi

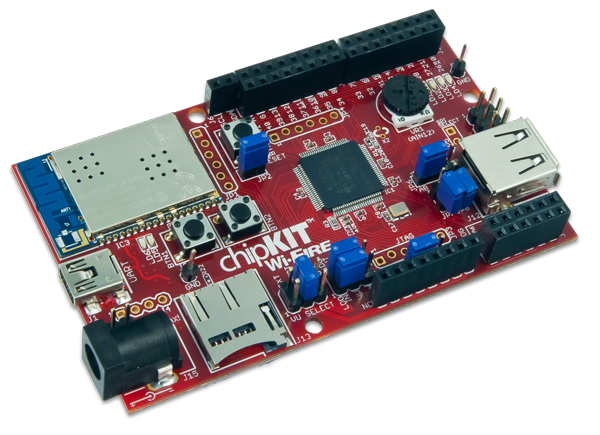

chipKIT™ Wi-FIRE

Introducing the chipKIT™ Wi-FIRE: The first chipKIT™ to feature the latest, most powerful chip in Microchip’s MZ microcontroller portfolio.
"The PIC32MZ family provides [2.5x] the performance and 4x the memory over the previous-generation PIC32MX families, along with a high level of advanced peripheral integration. For applications requiring embedded connectivity, the family includes [Hi-Speed USB, Ethernet], along with a broad set of wired and wireless protocol stacks.”

"The PIC32MZ is Microchip’s first MCU to employ Imagination’s MIPS M5150 core, which adds 159 new DSP instructions that enable the execution of DSP algorithms at up to 75% fewer cycles than the PIC32MX families. This core also provides the microMIPS® instruction-set architecture, which improves code density while operating at near full rate, instruction and data cache, and its 200 MHz/330 DMIPS offers [2.5x] the performance of the PIC32MX.” Microchip Press Release

Building on the previous successes with the chipKIT™ WF32, the Wi-FIRE uses the same, 43 available I/O Pins, 12 Analog Inputs, 3.3 Operating voltage, 4 User LEDs, potentiometer, buttons, uses MRF24 on-board wireless module, micro SD Card, dedicated SPI Signals and high efficiency switching 3.3V switching power supply for low-power operation.

Where the boards differ is what the PIC32MZ Processor can deliver.

The Wi-FIRE is significantly faster than its WF32 counterpart, with 200MHz operation speed, 2MB of Flash, 512kB RAM, High Speed USB and a 50MHz SPI. The PIC32MZ core includes the MIPS M5150 CPU Core from Imagination Technologies. M5150 is a highly efficient, compact, core that is optimized for cloud-connected based projects, using Imagination Technologies’ FlowCloud software.

The Wi-FIRE can be programmed using MPIDE and with the addition of a compatible in-system programmer/debugger, can be used with the more fully featured/advanced Microchip MPLAB®X IDE.

Click here to visit the chipKIT WiFIRE resource center.
ÖZELLİKLER


  • Processor:
    • Microchip® PIC32MZ2048EFG100 microcontroller (32-bit MIPS, 2MB Flash, 512K RAM)
      • 200 MHz/330 DMIPS, M5150 core
      • DSP-enhanced core:
        • Four 64-bit accumulators
        • Single-cycle MAC, saturating and fractional math
  • Microchip MRF24WG0MA WiFi module
  • Micro SD card connector
  • USB 2.0 Full-Speed / Hi-Speed OTG controller with A and micro-AB connectors
  • 50MHz SPI
  • 43 available I/O pins with on-board user interfaces:
    • 4 LEDs
    • 2 Buttons
    • 1 Potentiometer
  • PC connection uses a USB A > mini B cable (not included)
  • Fully supported by MPIDE
    • Example network libraries and code given in support documentation
    • Community at chipkit.net
  • For more advanced users, Microchip MPLAB®X IDE is available with separate programmer.
  • Imagination Technologies FlowCloud enabled for IoT based projects.

DOKÜMANLAR
