Stok Kodu : 8606015073255
DIGI POT CLICK
838,70 TL
Kategori
Fiyat
19,55 USD + KDV

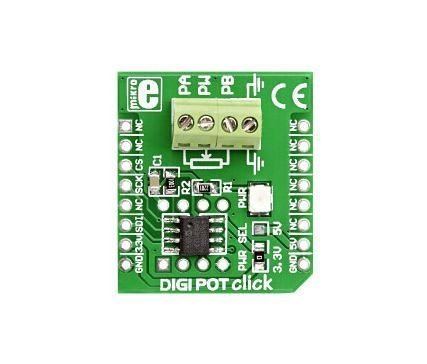

DIGI POT click
DIGIPOT Click is an accessory board in mikroBus™ form factor. It features a single-channel digital potentiometer MCP4161 with 8-bit resolution (256 wiper steps) and industry-standard SPI serial interface. The resistance value of the digital potentiometer goes up to 10 kΩ. It features outstanding AC/DC characteristics and low power consumption. It can be used in audio equipment, servo-motor control, battery charging and control, LCD contrast control, programmable filters etc.
Technical Specifications
Applications
Board
can be used in audio equipment, servo-motor control, battery charging and
control, LCD contrast control, programmable filters etc.
Key features
MCP4161 8-bit (256 wiper steps) digital potentiometers
Small dimensions, easy to integrate into your prototype devices.
WiperLock™ Technology which allows unlimited reprogramming and locking of the wiper setting
Low-Power consumption
