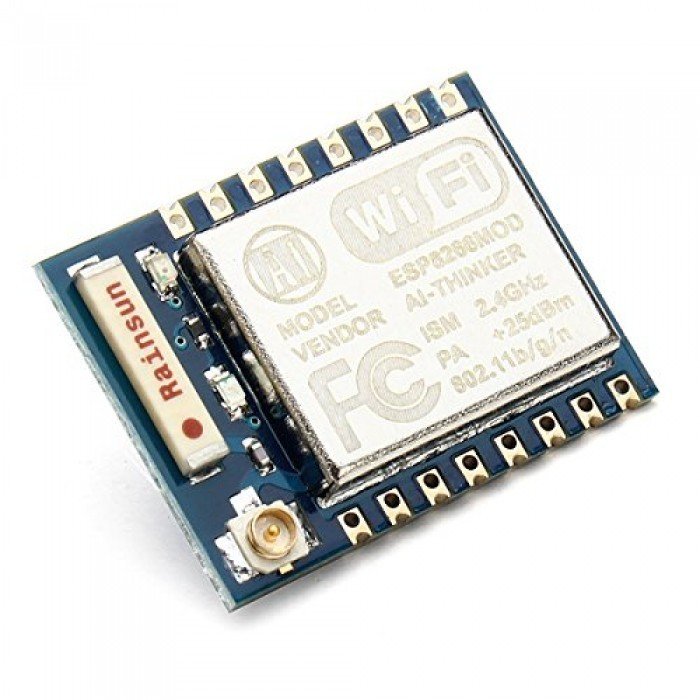

ESP8266 ESP-07 Wi-Fi Modül
Package | : SMD-16 |
Size | : 21.2*16*3 (±0.1)mm |
SPI Flash | : Default 8Mbit |
Interface | : UART/GPIO/ADC/PWM |
Frequency Range | : 2412 ~ 2484MHz |
Antenna | : Built-in ceramic antenna or IPEX |
Power Supply | : Voltage 3.0V ~ 3.6V , Current >300mA |
– The smallest 802.11b/g/n Wi-Fi SOC module – Low power 32-bit CPU, can also serve as the application processor – Up to 160MHz clock speed – Built-in 10 bit high precision ADC – Supports UART/GPIO/IIC/PWM/ADC – SMD-16 package for easy welding – Integrated Wi-Fi MAC/BB/RF/PA/LNA – Deep sleep current as low as 20uA – Embedded lwIP protocol stack – Supports STA/AP/STA + AP operation mode – Support Smart Config/AirKiss technology – UART baudrate up to 4Mbps – General AT commands can be used quickly – Supports remote firmware upgrade (FOTA)
|
