Stok Kodu : 254.05.04.04
ESP-07S Wi-Fi MODÜL
170,21 TL
Birlikte Alın

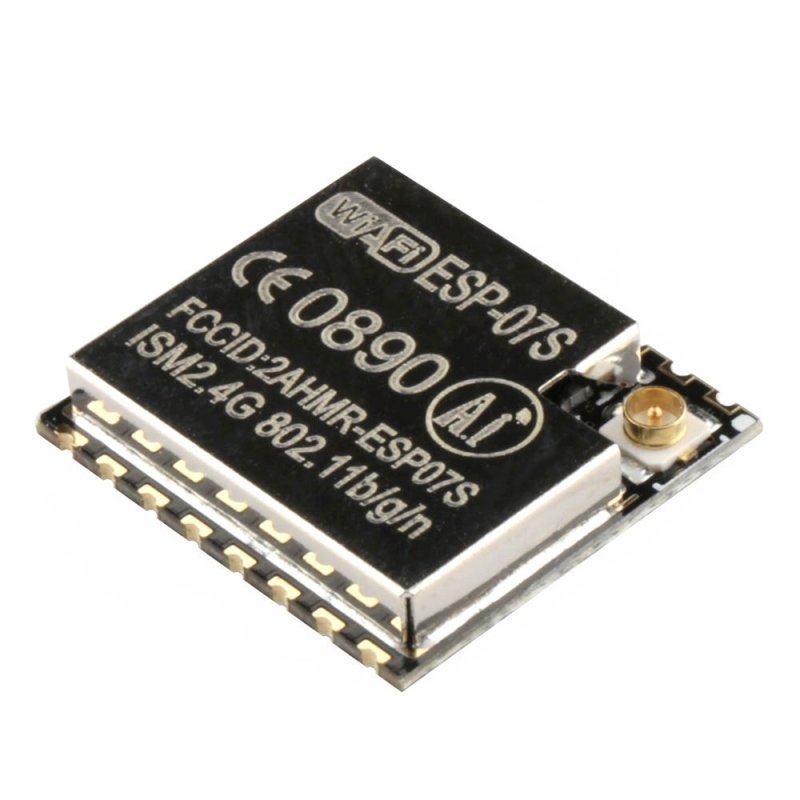

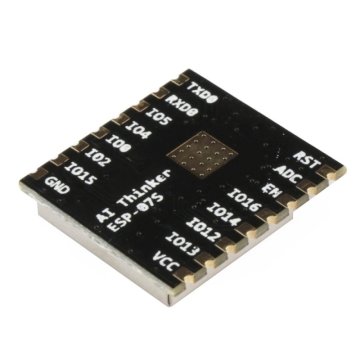

ESP8266 ESP-07S Wi-Fi Modül
| Package | : SMD-16 |
| Size | : 17*16*3 (±0.1)mm |
| SPI Flash | : Default 32Mbit |
| Interface | : UART/GPIO/ADC/PWM |
| Frequency Range | : 2412 ~ 2484MHz |
| Antenna | : IPEX |
| Power Supply | : Voltage 3.0V ~ 3.6V , Current >300mA |
|
– The smallest 802.11b/g/n Wi-Fi SOC module – Low power 32-bit CPU, can also serve as the application processor – Up to 160MHz clock speed – Built-in 10 bit high precision ADC – Supports UART/GPIO/IIC/PWM/ADC – SMD-16 package for easy welding – Integrated Wi-Fi MAC/BB/RF/PA/LNA – Deep sleep current as low as 20uA – Embedded lwIP protocol stack – Supports STA/AP/STA + AP operation mode – Support Smart Config/AirKiss technology – UART baudrate up to 4Mbps – General AT commands can be used quickly – Supports remote firmware upgrade (FOTA)
|
