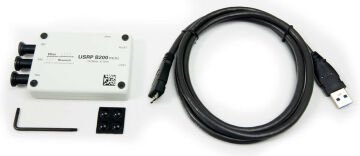

Ettus USRP B200mini with Enclosure
ETTUS USRP B200mini
1x1, 70MHz-6GHz SDR/Cognitive Radio
Delivers a 1×1 SDR/cognitive radio in the size of a business card
With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 XC6SLX75 FPGA, Ettus USRP B200mini is ideal for both hobbyist and OEM applications. Experiment with the USRP B200mini across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community.
The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B200mini also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.
Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements. UHD provides both a C/C++ and Python API and offers cross-platform support for multiple industry standard development environments and frameworks, including RFNoC, GNU Radio, LabVIEW and Matlab/Simulink. And to ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS.
FEATURES
| • Xilinx Spartan-6 XC6SLX75 FPGA • Analog Devices AD9364 RFIC transceiver • RF Specifications -Channels: 1 TX, 1 RX -Frequency range: 70 MHz to 6 GHz -Instantaneous Bandwidth: Up to 56 MHz -IIP3 (at typical NF): -20 dBm -Power Output: >10 dBm -Receive Noise Figure: <8 dB • Conversion Performance and Clocks -ADC Sample Rate (Max.): 61.44 MS/s -ADC Resolution: 12 bits -DAC Sample Rate (Max.): 61.44 MS/s -DAC Resolution: 12 bits -Host Sample Rate (16b): 61.44 MS/s -Frequency Accuracy: +/-2.0 ppm • Synchronization -10 MHz clock reference -PPS time reference • USB Power: 5V • Operating Temp. Range: 0 - 45 °C • Software -USRP Hardware Driver 3.9.2 (or later) -GNU Radio • Include USB 3.0 cable |
Demo / Project Links
Getting Started Guide with USRP B200 Mini
https://kb.ettus.com/Using_B200/B210/B200mini/B205mini_on_OSX_/_macOS_with_UHDGetting Started Guide with Ettus USRP B200
Applications
AM/FM
Cellular Communication / GPS / WiFi
TV Broadcast
Industrial, Scientific, and Medical (ISM)
