Stok Kodu : FLUKE-107
FLUKE 107
5.106,24 TL

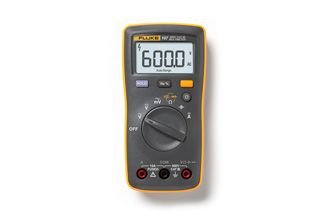

FLUKE 107 DİJİTAL MULTİMETRE
The Fluke 107 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.
Fluke 107 Palm-sized Digital Multimeter
- Voltage, resistance, continuity, capacitance
- Input terminal for ac and dc current measurements to 10 A and current
- Backlit display
- Data hold
- Diode test, plus frequency and duty cycle measurements
Fluke 107 Palm-sized Digital Multimeter
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])
| Accuracy Specifications | ||||
| AC Volts (40 Hz to 500Hz)1 |
Range | Resolution | Accuracy | |
| 6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
1.0 % + 3 | ||
| DC Volts | 6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
0.5 % + 3 | |
| AC Millivolts | 600.0 mV | 0.1 mV | 3.0 % + 3 | |
| Diode Test2 | 2.000 V | 0.001 V | 10 % | |
| Resistance (Ohms) |
400.0 O 4.000 kO 40.00 kO 400.0 kO 4.000 MO 40.00 MO |
0.1 O 0.001 kO 0.01 kO 0.1 kO 0.001 MO 0.01 MO |
0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3 |
|
| Capacitance3 | 50.00 nF 500.0 nF 5.000 µF 50.00 µF 500.0 µF 1000 µF |
0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF 1 µF |
2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 |
|
| Frequency4 Hz (10 Hz – 100 kHz) |
50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
0.1 % + 3 | |
| Duty Cycle4 | 1 % to 99 % | 0.1 % | 1 % typical 5 | |
| AC Current (40 Hz to 200 Hz) |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
| DC Current | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
|
||||
| Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio |
| AC Volts | 600 V 1 | >10 MO <100 pF 2 | >60 dB at dc, 50 Hz or 60 Hz |
- |
| AC Millivolts | 600 mV | >1M, <100 pF | >80 dB at 50 Hz or 60 Hz | - |
| DC Volts | 600 V 1 | >10 MO <100 pF | >100 dB at dc, 50 Hz or 60 Hz |
>60 dB at 50 Hz or 60 Hz |
|
||||
| General Specifications | ||||
| Maximum Voltage Between any Terminal and Earth Ground | 600 V | |||
| Display (LCD) | 6000 counts, updates 3/sec | |||
| Battery Type | 2 AAA, NEDA 24A, IEC LR03 | |||
| Battery Life | 200 hours minimum | |||
| Temperature | ||||
| Operating | 0 °C to 40 °C | |||
| Storage | -30 °C to 60 °C | |||
| Relative Humidity | ||||
| Operating Humidity | Non-condensing when <10°C =90 % at 10 °C to 30 °C; =75 % at 30 °C to 40 °C |
|||
| Operating Humidity, 40 MO Range | =80 % at 10 °C to 30 °C; =70 % at 30 °C to 40 °C | |||
| Altitude | ||||
| Operating | 2000 m | |||
| Storage | 12,000 m | |||
| Temperature Coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) | |||
| Fuse Protection for Current Inputs | 11A, 1000V Fast Fuse, Fluke specified part only | |||
| Size (HxWxL) | 142 mm x 69 mm x 28mm | |||
| Weight | 200 g | |||
| IP Rating | IEC 60529: IP 40 | |||
| Safety | IEC 61010-1: 600 V CAT III, Pollution Degree 2 | |||
| Electromagnetic Environment | IEC 61326-1: Portable | |||
| Electromagnetic Compatibility | Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1 | |||
| 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. | ||||
