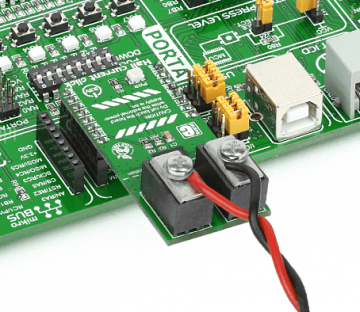

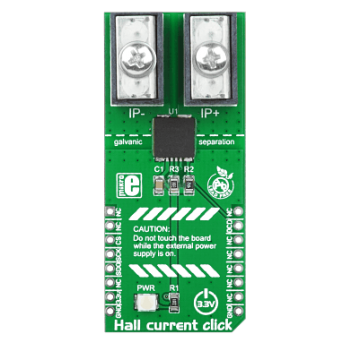

Hall Current Click
Hall current click™ is a high precision current sensor. It carries a galvanically isolated TLI4970-D050T4miniature magnetic digital current sensor that utilizes the Hall effect to measure electric current. The board carries two EXTreme ZPower connectors (IP- and IP+) to connect the conductor. The current rail is galvanically isolated from the interface to the microcontroller. The sensor readings are sent to the target board through the mikroBUS™ SPI (SDO, SCK, and CS) lines. The board uses a 3.3V power supply only. Use caution when working with current and the Hall current click™ - DO NOT TOUCH THE BOARD WHILE THE EXTERNAL POWER SUPPLY IS ON!
UYGULAMALAR
TEKNİK ÖZELLİKLER
