Endüstriyel PC PPC-A72-070-C

Hardware Features

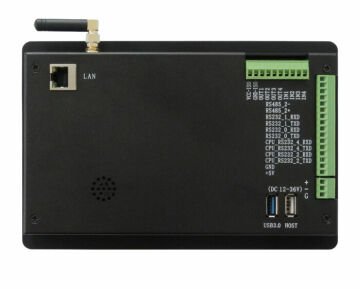

• The PPC-A72-070-C has several expansion connectors on the backside – 1 USB 2.0 connector, 1 USB 3.0 connector, 1 Type-C connector, 1 LAN connector, 4 RS232 connectors, and 2 RS485 connectors. It also features a 3.5mm audio connector and a TF card slot.

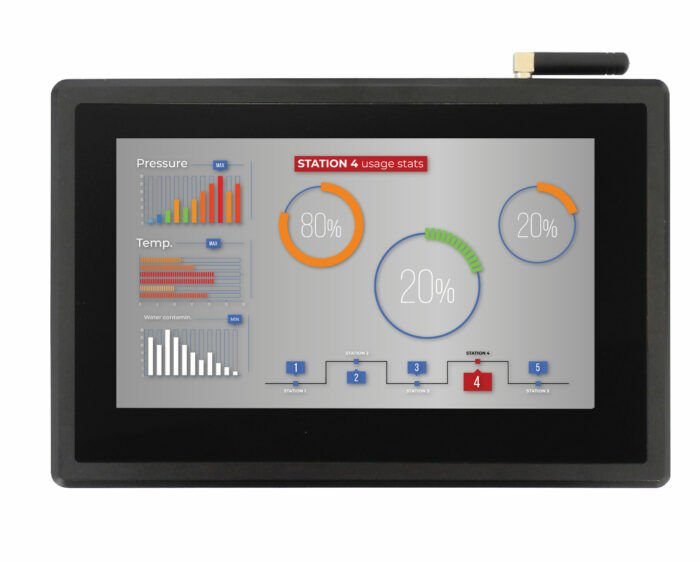

• The PPC-A72-070-C has a 7’’ five-point capacitive touch screen, with a 1024×600 resolution. Five-point capacitive touchscreens offer stable and accurate control over the device.


• Capacitive touchscreens offer great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.


• The WiFi/Bluetooth module is based on the Realtek RTL8723BU an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and a network USB interface (USB 1.0/1.1/2.0 compatible) controller with an integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.


• The RS485 and RS232 connectors are DB16 connectors (as you can see from the image).


• The RS232 and the RS485 port speed is up to 115200 Baud.


• The PPC-A72-070-C has one channel 1Gb Ethernet port and one TF (uSD) card connector. This device supports a TF card of up to 32GB.

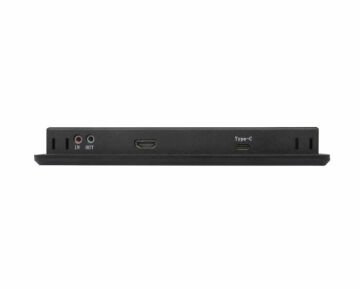

• When it comes to audio capabilities, the PPC-A72-070-C has one 3.5mm Output/Input connector and a 2W internal speaker.


• The typical power consumption is 8W.
