Endüstriyel PC PPC-A72-101

Stok Kodu : PC PPC-A72-101

Endüstriyel PC PPC-A72-101

13.999,61 TL
Kategori
KART TİPİ
Barkod
CS12800R101P
Fiyat
329,00 USD + KDV
GELİNCE HABER VER
Birlikte Alın
24V 2.2A KUTULU TİP SMPS LRS-50-24
MEAN WELL
24V 2.2A KUTULU TİP SMPS LRS-50-24
510,62 TL
SEPETE EKLE
Ürün Bilgisi
Ürün Bilgisi

PPC-A72-101

P/N: CS12800R101P


This product features the Rockchip RK3399, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) high performance and ultra-efficient processor that implements the ARM v8-A architecture. The fast processing of Cortex-A72 is particularly suited to mobile applications.

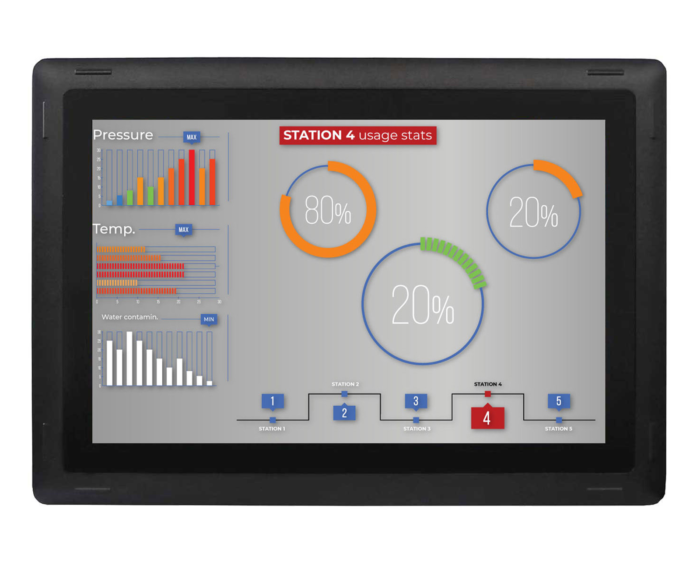

The PPC-A72-101 (PN CS12800R101P) is a high-quality industrial panel computer, that features a 10.1-inch LCD with a ten-point capacitive touchscreen, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) processor with 4GB DDR3 RAM and 16GB eMMC Flash, 1Gb Ethernet, 1 USB 2.0 ports, 1 USB 3.0 port, 1 Type-C port, 1 LAN port, 3 RS232 connectors, and 2 RS485 connectors, as well as a 3.5mm audio connector.









    Hardware Features

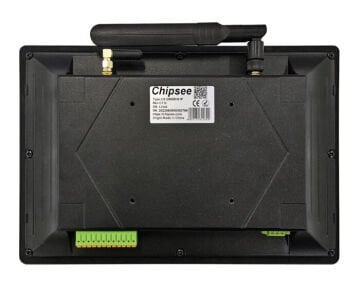

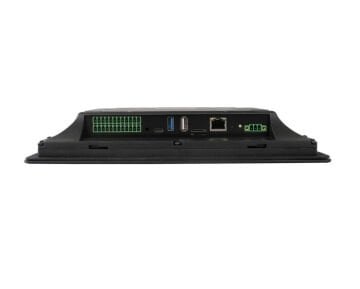

  • The PPC-A72-101 has several expansion connectors on the backside – 1 USB 2.0 connector, 1 USB 3.0 connector, 1 Type-C connector, 1 LAN connector, 3 RS232 connectors, and 2 RS485 connectors. It also features a 3.5mm audio connector and a TF card slot.

  • The WiFi/Bluetooth module is based on the Realtek RTL8723BU an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and a network USB interface (USB 1.0/1.1/2.0 compatible) controller with integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.

  • The speed of the RS232 and the RS485 port is up to 115200 Baud.

  • The PPC-A72-101 has one channel 1Gb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 128GB SDHC.

  • When it comes to audio capabilities, the PPC-A72-101 has one 3.5mm Output/Input connector and a 2W internal speaker.

  • The typical power consumption is 8W.

  • The PPC-A72-101 has a 10.1” 10-point capacitive touch screen, with a 1280×800 resolution. 10-point capacitive touchscreens offer stable and accurate control over the device.

  • Capacitive touchscreens offer great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.











Performances and reliability

This product features the Rockchip RK3399, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) high performance and ultra-efficient processor that implements the ARM v8-A architecture. The fast processing of Cortex-A72 is particularly suited to mobile applications.



This processor supports the following features: advanced single instruction multiple data (SIMD) operations, floating-point operations, and optional cryptography extension.









Multiple OS choices



This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.



It supports the following operating systems:
  • Android 7.1
  • Buildroot Linux Qt 5.14
  • Debian 10

    •









    Chipsee Linux is based on NXP Yocto framework that we have integrated with:
    • A Chipsee Hardware Test Application.

    • An initialization script for GPIO/Buzzer/Audio.

    • Multiple libraries, such as the libQt5Sql to develop Qt application with SQL.

    • Various packages, such as the ntfs-3g to use NTFS.

    Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.







    Technical Features



    Weight 1600 g
    Dimensions 275.5 × 193.5 × 46 mm
    Form-factor Panel
    Display Size (inch.) 10.1"
    CPU ARM Cortex A72: Rockchip RK3399
    RAM 4GB DDR3
    FLASH 16GB
    External storage TF (microSD) Card Slot
    Resolution 1280*800
    Brightness (NIT) 400 NIT
    Touch Screen Capacitive
    Bluetooth Onboard Bluetooth
    WiFi Onboard WiFi
    4G Supported, NOT mounted by default
    Ethernet 1x LAN 1000M
    USB 1x USB 3.0 HOST, 1x USB Type-C, 1x USB 2.0 HOST
    GPIO Optional
    RS232 3 x RS232
    RS485 2 x RS485
    Buzzer Yes
    Power Consumption 12W
    Power Input 12~36V DC
    Working Temperature 0°C to +60°C
    Mounting Method PANEL & VESA Mounting







    Documentation and Downloads



    Hardware Documentation For More Information
