Stok Kodu : 031.01.02

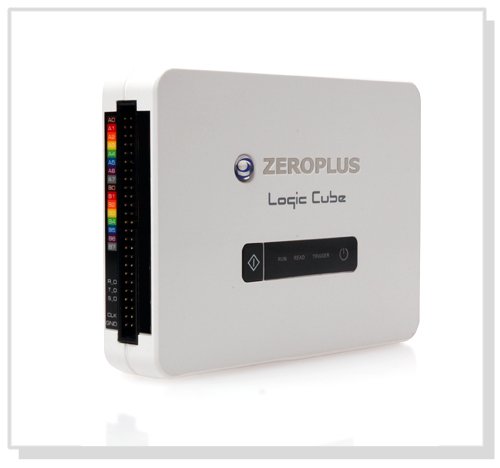

Lojik Analizör LAP-C 16064
12.723,05 TL
Kategori
Fiyat
299,00 USD + KDV
Birlikte Alın
LAP-C 16064 LOJİK ANALİZÖR
16 Kanal 1Mbits (Kanal Başına 64Kbits)
DESTEKLEDİĞİ PROTOKOLLERDEN BAZILARI
1-WIRE、CAN 2.0B、IRDA、3-WIRE、JTAG 2.0、PS/2、I2C(EEPROM 24LCS61/24LCS62)、SSI Interface、MANCHESTER、MILLER、SPI Compatible (Atmel Memory)、I2C、UART(RS-232C/422/485)、SPI、7-SEGMENT LED、USB 1.1、LCD1602、DIGITAL LOGIC、ARITHMETICAL LOGIC、MICROWIRE、I2C(EEPROM 24L)、UP DOWN COUNTER、MICROWIRE(EEPROM 93C)、LIN 2.1、LED Pitch Array
110 dan fazla protokol ücretsizdir.
 |
 |
|
Kullanım Kılavuzu |
Yazılım |
Sample Rate:
Internal Clock (Timing Mode) 100Hz~100MHz
External Clock (State Mode) 100MHz
External Clock (State Mode) 100MHz
Threshold Voltage:
Bandwidth：75MHz
Working Range： -6V~+6V
Accuracy： ±0.1V
Working Range： -6V~+6V
Accuracy： ±0.1V
Memory:
Memory：1Mbits
Depth(Per Channel)：64Kbits (Max 16Mbits for compression)
Depth(Per Channel)：64Kbits (Max 16Mbits for compression)
Trigger:
Condition：Pattern/Edge
Trigger Channel ：16 CH
Pre/Post Trigger：YES
Trigger Level：1 Level
Trigger Count： 1~65535
Trigger Channel ：16 CH
Pre/Post Trigger：YES
Trigger Level：1 Level
Trigger Count： 1~65535
Software Function:
Data Compression： Max 16Mbits
Width Display
Filter Delay
Trigger Delay
Infinite Increase Spacer Bar
Automatic Zoom In of Spacer Bar
Automatic Software Upgrade
Data Range Selectable
Statistic
Bus Inquiry and Counter
Filter Bar
Protocol Analyzer Plug-In
Protocol Packet List
Width Display
Filter Delay
Trigger Delay
Infinite Increase Spacer Bar
Automatic Zoom In of Spacer Bar
Automatic Software Upgrade
Data Range Selectable
Statistic
Bus Inquiry and Counter
Filter Bar
Protocol Analyzer Plug-In
Protocol Packet List
Other:
Power ：USB (DC 5V, 500mA)
Operating System： Windows 2000 / XP(32bits) / Vista / Win 7
Operating System： Windows 2000 / XP(32bits) / Vista / Win 7
Windows 8/8.1 işletim sistemleri için
Phase Errors： < 1.5ns
Maximum Input Voltage： ±30V
Impedance：500KΩ/10pF
Safety Certification： FCC / CE / WEEE / RoHS
Phase Errors： < 1.5ns
Maximum Input Voltage： ±30V
Impedance：500KΩ/10pF
Safety Certification： FCC / CE / WEEE / RoHS
