MCC E-DIO24 24 Channel Digital I/O Ethernet Device
MCC E-DIO24
24-channel digital I/O ethernet device for remote I/O and control applications

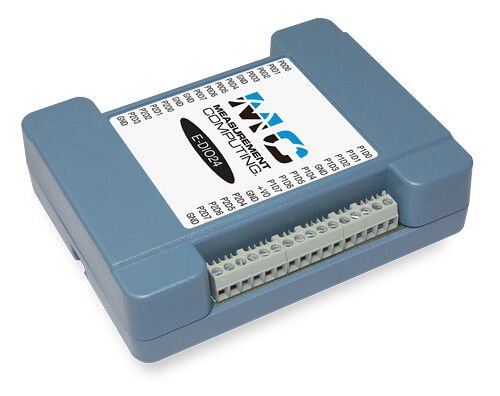

The Measurement Computing E-DIO24 is a 24-channel digital I/O device ideal for network-based applications and remote monitoring and control. The E-DIO24 has a built-in high-speed communication port. Users can remotely access and configure the device with software over the internet.
The E-DIO24 has 24 digital I/O lines configured as three 8-bit ports. Each bit is individually configurable for input or output. Users can enable a digital bit configured for output to change state when a host connection is established or broken. Data can be transferred at rates up to 5kS/s when the device and host are connected by Ethernet to the same local network. Typical throughput is system-dependent. All DIO lines are pulled high by default to 5 V through 47 kΩ resistors through three onboard jumpers. Each jumper configures one 8-bit digital port and can easily be changed to pull-down.
The 32-bit event counter pin counts TTL pulses and accepts frequency inputs up to 10 MHz.
The E-DIO24 is externally powered by an included 5 VDC power supply.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
Features
|
Links
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
