MCC USB-1024HLS 24 Channel Digital I/O USB DAQ
MCC USB-1024HLS 24-Channel Digital I/O USB Device

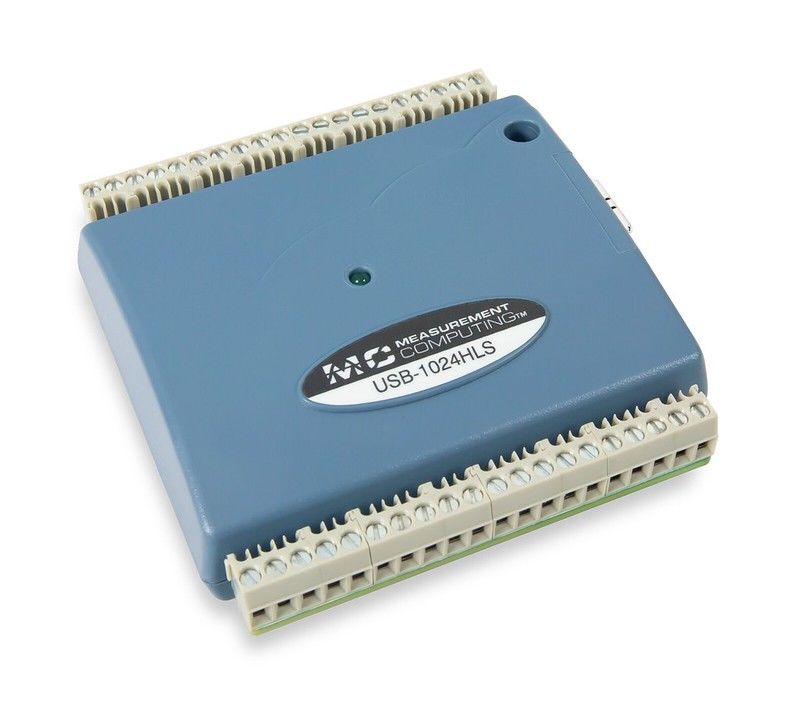

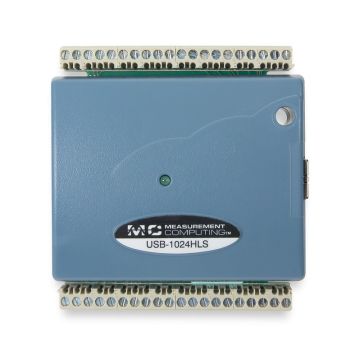

The Measurement Computing USB-1024HLS is a 24-channel digital I/O device with 5.5 V input voltage, up to 64 mA sink input/24 mA source output, and one 32-bit event counter.
The USB-1024HLS provides 24 DIO channels configured as either two banks of eight ports and two banks of four ports, or three banks of eight ports. Each port is independently configurable for input or output. The device is designed to emulate 82C55 mode 0. Outputs are high-drive TTL that can source 15 mA and sink 64 mA.
The USB-1024 HLS provides a 32-bit event counter to count TTL pulses. The counter accepts inputs up to 1 MHz.

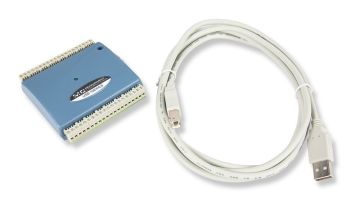

This device is USB-powered and requires no external power.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, MATLAB®, Linux®, and Python™.
Features
|
Other Model of USB-1024 Series
Links
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
