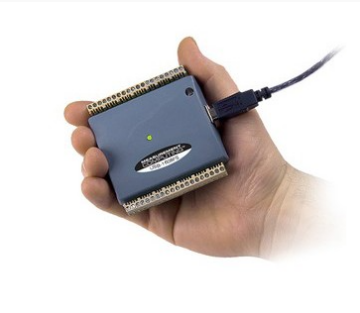

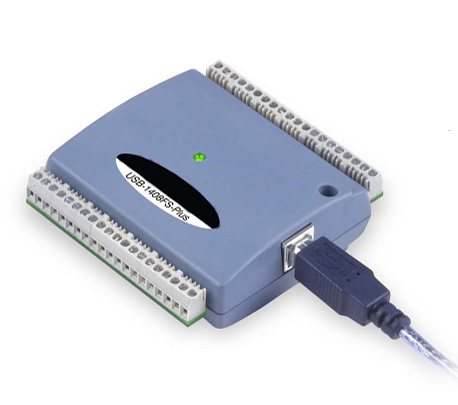

MCC USB-1408FS-Plus Multifunction USB DAQ
MCC USB-1408FS-Plus Multifunction USB DAQ Device
The Measurement Computing USB-1208FS-Plus/LS/1408FS-Plus Series consists of low-cost analog and digital I/O devices. All devices in this series offer four differential (DIFF) or eight single ended (SE) analog inputs, two analog outputs, 16 digital I/O and one event counter. The USB-1208LS offers sample rates up to 1.2 kS/s, while all USB-1208FS-Plus and USB-1408FS-Plus devices offer sample rates up to 50 kS/s. All devices in this series also support multiple software-selectable voltage input ranges, making them ideally suited for a wide assortment of measurements.
These devices are USB-powered and require no external power.
The USB-1208LS and USB-1208FS-Plus provide eight, 11-bit SE analog inputs or four, 12-bit DIFF analog inputs. The USB-1408FS-Plus These devices provide eight, 13-bit SE analog inputs or four, 14-bit DIFF analog inputs. All devices support software-selectable ranges that provide inputs from ±1 V to ±20 V in a DIFF configuration, and ±10 V in a SE configuration.
The USB-1208LS offers two 10-bit analog outputs with a range of 0 V to 5 V. The USB-1208FS-Plus and USB-1408FS-Plus offer two 12-bit analog outputs with a range of 0 V to 5 V.
All devices provide 16 TTL-level digital I/O lines. Digital I/O can be programmed on each 8-bit port (Port A and Port B) for either input (default) or output.
Each device supports one 32-bit TTL-level counter that accepts inputs up to 1 MHz.
USB-1408FS-PLUS features a 48 kS/s sample rate, 8 analog inputs, 2 12-bit analog outputs, 16 digital I/O connections, and one 32-bit external event counter.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Features
4 Differential or 8 Single ended analog inputs
14-bit resolution
48 kS/s sample rate
Two analog output
16 digital I/O
One counter input
No external power required.
USB cable is included
Links
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
