MCC USB-2001-TC Single Channel Thermocouple Measurement Device
MCC USB-2001-TC
Single Channel Thermocouple Measurement Device
Temperature measurement DAQ devices for thermocouple and RTD data acquisition applications

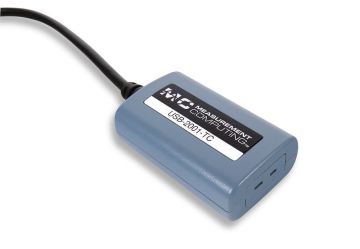

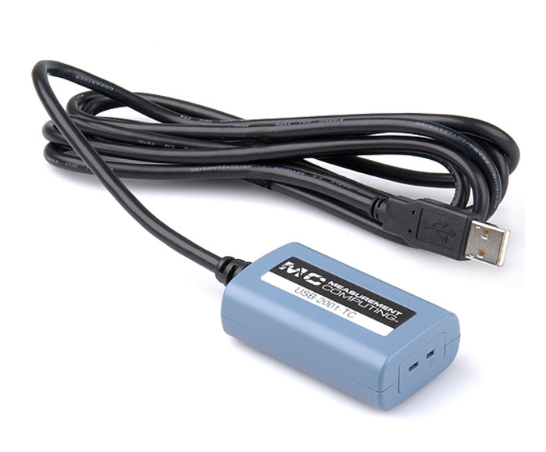

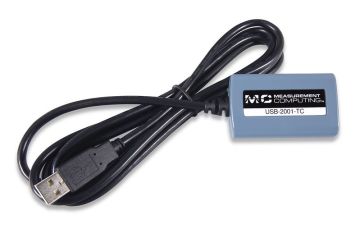

The Measurement Computing USB-2001-TC is a USB-based thermocouple measurement device.
The USB-2001-TC is a USB device that takes measurements from type J, K, R, S, T, N, E, and B thermocouples. The thermocouple type is software programmable and stored on the device. A 20-bit ADC processes the data conversions.
The USB-2001-TC is equipped with open thermocouple detection. With OTD, any open-circuit condition at the thermocouple sensor is detected by the software. An open channel is detected by driving the input voltage to a positive value outside the range of the thermocouple output. The software recognizes this as an invalid reading and returns the value "OTD”.
Users can quickly connect a thermocouple to the USB-2001-TC with a standard miniature connector.
This device is USB-powered and require no external power.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, and Python™.
Features
|
|
Links
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
