The Measurement Computing USB-2416-4AO is ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions.
The USB-2416-4AO features 32 SE/ 16 DIFF, 16-bit analog inputs for measuring voltage or thermocouples measurements (thermocouples are measured in DIFF mode), 1 kS/s sample rate, four analog outputs, 8 digital I/O, and two counter inputs.
The device provides 32 SE/16 DIFF analog inputs, expandable to 64 SE/32 DIFF (using AI-EXP32). Software-selectable voltage input ranges are configurable per-channel.
The USB-2416-4AO provides four 16-bit analog outputs with a ±10 V output range. The analog outputs can be updated at a maximum rate of 1 kS/s (system dependent).
The USB-2416-4AO also provides eight digital I/O lines with read/write rates of 500 port or single bit reads per second. Each DIO channel is an open-drain. Digital outputs can sink up to 150 mA for direct drive applications. The maximum sink current is 150 mA per eight-channel bank, or if all eight channels are used, 18 mA (maximum) per channel.
The device has two 32-bit event counters that accept frequency inputs up to 1 MHz. The internal counter increments when the TTL levels transition from low to high.

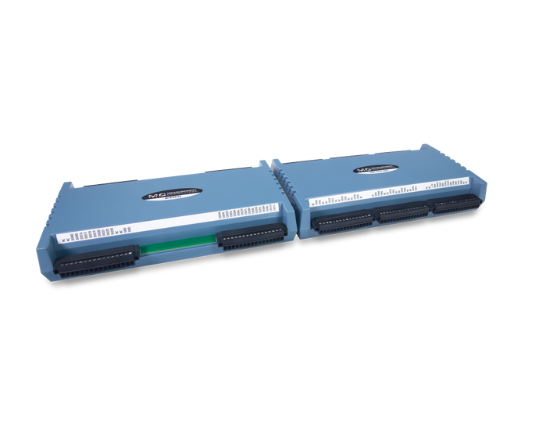

The AI-EXP32 expansion device provides an additional 32 SE/16 DIFF analog inputs and 16 DIO lines. The AI-EXP32 supports all analog/thermocouple input and digital I/O features of the USB-2416 Series devices to which it is connected. The USB-2416 Series docks directly to the AI-EXP32 with an expansion connector on each device. No additional cable is required. The AI-EXP32 receives power from the connected USB-2416 Series device.
The USB-2416-4AO is externally powered by an included 5 VDC power supply.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
