MCC USB-3102 Voltage and Current Output USB Devices
MCC USB-3102
Voltage and Current Output USB Devices
Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-3100 Series features up to 16 analog outputs, 8 digital I/O, and one 32-bit counter input. Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously. USB-3102 also features 0 mA to 20 mA of current output. Each DAC controls a voltage/current channel pair simultaneously. Each channel pair can be updated individually or simultaneously.

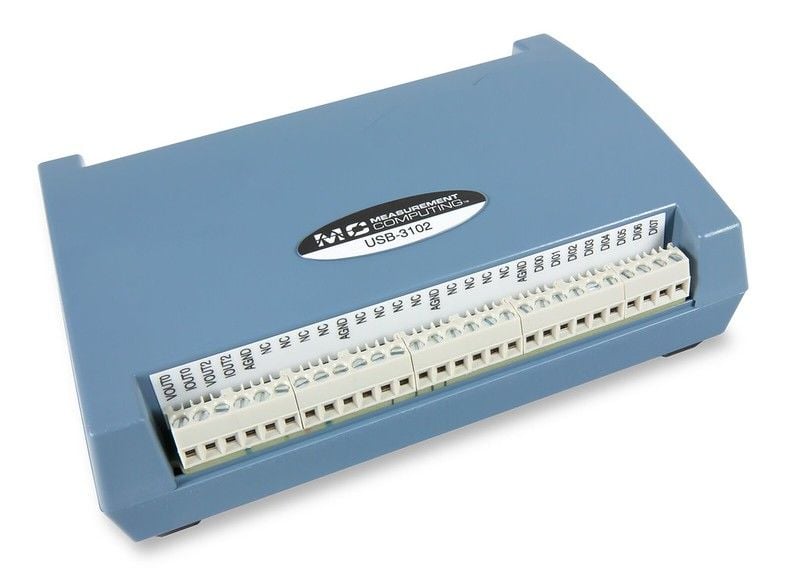

USB-3102 features four voltage/current output channels, eight digital I/O, and one counter input.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
USB-3100 Series Selection Chart
| Model | Voltage Output | Update Rate | Current Output | DIO | Counter/Timer | Isolation |
|---|---|---|---|---|---|---|
| USB-3101 | 4 | 100 S/s | — | 8 | 1 | — |
| USB-3102 | 4 | 100 S/s | 4 | 8 | 1 | — |
| USB-3103 | 8 | 100 S/s | — | 8 | 1 | — |
| USB-3104 | 8 | 100 S/s | 8 | 8 | 1 | — |
| USB-3105 | 16 | 100 S/s | — | 8 | 1 | — |
| USB-3106 | 16 | 100 S/s | 16 | 8 | 1 | — |
| USB-3110 | 4 high-drive | 100 S/s | — | 8 | 1 | — |
| USB-3112 | 8 high-drive | 100 S/s | — | 8 | 1 | — |
| USB-3114 | 16 high-drive | 100 S/s | — | 8 | 1 | — |
| USB-3101FS | 4 | 100 kS/s | — | — | — | 250 Vrms ch-to-gnd |
MCC USB-3102 Features
- 4 analog outputs
- 16-bit resolution
- 100 S/s update rate
- USB-3102:
- Voltage output: ±10 V, 0 V to 10 V
- Current output: 0 mA to 20 mA (typical)
- Eight digital I/O
- One counter input
What's Included
- USB-3102
- USB cable
- Power Supply, 5 VDC Output (included with USB-3114 only, USB-3102 & USB-3104 are USB-bus powered)
- Field Changeable AC Input Plug (included with USB-3114, USA style is included, other types may be purchased separately)
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami - Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows® 10/8/7/Vista®, 32-bit or 64-bit English, Chinese, and German language support.
Custom Applications without Programming: DASYLab® - Optional
Programming and Driver Support - Included
