MCC USB-DIO96H 96 Channel Digital I/O Device
MCC USB-DIO96H
96-channel digital I/O device for digital I/O and control applications
The Measurement ComputingUSB-DIO96H is ideal for
high-channel count digital I/O requirements. The device provides high current, logic-level,
bidirectional digital I/O and counter operation, and is designed with a
heavy-duty chassis for rugged applications.
The
USB-DIO96H provides 96 DIO channels that are configured as eight banks of eight
ports and eight banks of four ports. Each port is independently configurable
for input or output. The device is designed to emulate 82C55 mode 0. Digital
outputs are high-drive TTL that can source 24 mA/sink 64 mA. Digital I/O lines

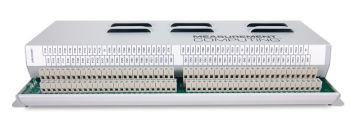

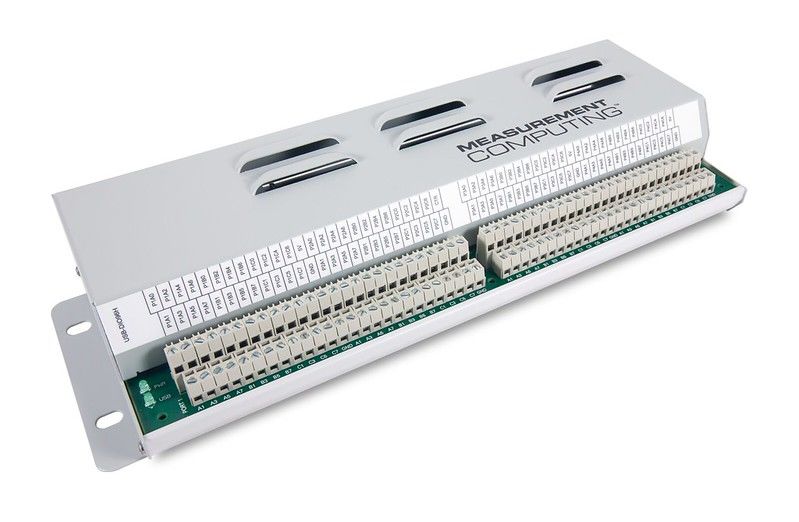

are accessed through the screw terminals on the USB-DIO96H. The USB-DIO96H is housed
in a rugged metal enclosure that users can mount on a DIN rail or bench.

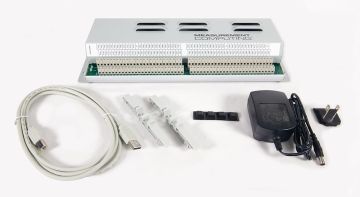

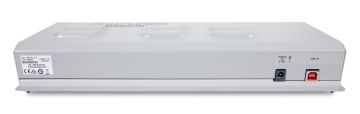

The USB-DIO96H is externally powered by an
included 5 VDC power supply.
Software support
includes DAQami, an optional out-of-the-box application for data logging,
visualization, and signal generation. Data can be viewed in real-time or
post-acquisition on user-configurable displays. Drivers are included for the
most popular applications and programming languages including Visual C++®,
Visual C#®, Visual Basic®.NET, DASYLab®,
LabVIEW™, MATLAB®, Linux®, and
Python™.
Features
|
Links
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can be purchased directly from MCC.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami -Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows®11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
Programming and Driver Support -Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
