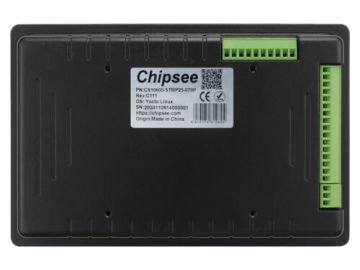

Panel PC PPC-A35-070
The PPC-A53-070 is a high-performance 7’’ industrial computer powered by the STM32MP257 processor that ensures seamless performance with its advanced ARM Cortex architecture. It stands out as a low-cost solution, offering exceptional performance without compromising your budget.
The PPC-A53-070 is a high-performance 7’’ industrial computer powered by the STM32MP257 processor that ensures seamless performance with its advanced ARM Cortex architecture. It stands out as a low-cost solution, offering exceptional performance without compromising your budget.
Designed for reliability and efficiency, it integrates a vibrant capacitive multi-touch display, versatile I/O interfaces, and robust construction, making it ideal for industrial automation, IoT, retail and kiosk applications, transportation, medical equipment, test and measurement and more.
Hardware Features
Performances and reliability
The PPC-A35-070 Industrial Panel PC is based around the STM32MP257F System on Chip (SoC), powered by the STMicroelectronics low-power processor which integrates a dual(2)-core Cortex®-A35 1.5GHz processor.
The STM32MP257F supports multi-format video decoders and has a high-performance DDR4 4GB RAM capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces. It also features a 1.35 Tops NPU for AI features.
Operating System
The PPC-A35-070 comes with the Yocto Linux operating system pre-installed.
| Weight | 900 g |
|---|---|
| Dimensions | 188.05 × 123.11 × 33.20 mm |
| Net weight | 700 g |
| CPU | STM: STM32MP257F |
| CPU Frequency | Dual(2)-core Cortex®-A35 1.5GHz processor |
| Storage | TF Card, Supports up to 128GB SDHC |
| RAM | 4GB DDR4 |
| eMMC | 16GB |
| NPU | VeriSilicon GC8000UL – TensorFlowLite – ONNX – Linux NN, 900 MHz, 1.35 TOPS |
| GPU | VeriSilicon GC8000UL – Open GL ES 3.2.8 – Vulkan 1.2, 900 MHz, up to 150 Mtriangle/s or 900 Mpixel/s |
| SSD | Not supported |

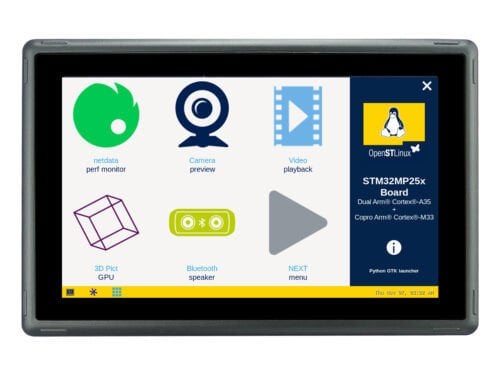

| Display size | 7.0″ |
| Touch Screen | 5-point capacitive touch screen |
| Resolution | 1024*600 |
| Brightness (NIT) | 500 NIT |

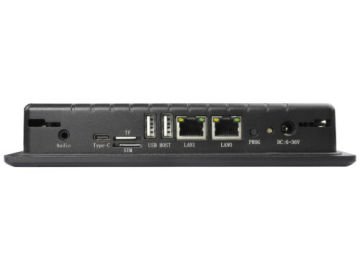

| USB | 1x USB Type-C, 2x USB 2.0 HOST |

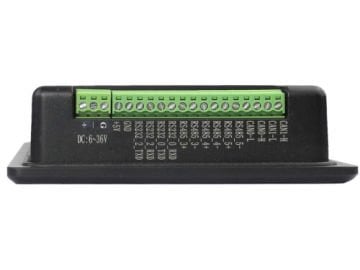

| CAN | 2 x CAN by default |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | 3 x RS485 by default |

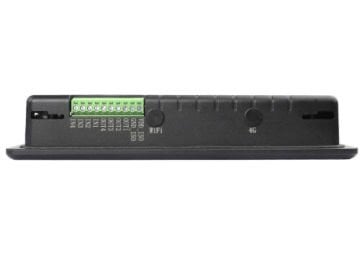

| GPIO | 8 Channels, 4 Input, 4 Output |
| 4G | Optional |
| WiFi/BT | Onboard WiFi |
| PoE | Supported for 1 x optional POE RJ45 |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Buzzer | Onboard, driven by GPIO |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Ethernet | 2 x RJ45, GbE |
| OS | Yocto Linux |
| Current at 12V | 500mA (max) |
| Power Consumption | 6W |
| Power Input | 6~36V DC |
| Working Temperature | -10°C to +60°C |
| Mounting Method | VESA, PANEL |
