Panel PC PPC-A55-101
The PPC-A55-101 is a full-featured, rugged industrial computer designed and certified for industrial usage. It is ready to deploy industrial applications based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor.

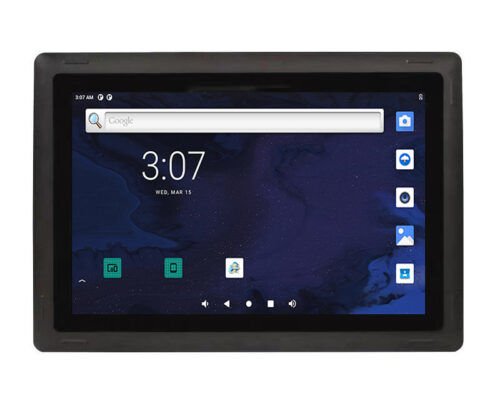

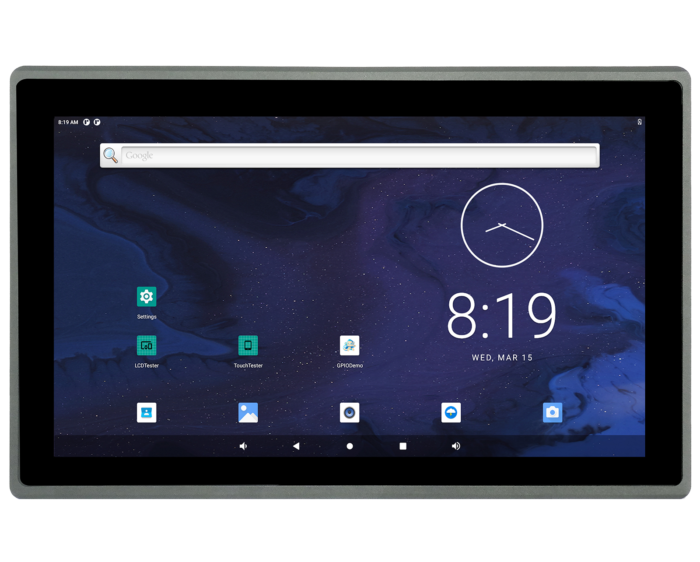

The PPC-A55-101 (CS12800-RK3568-101P) is a high-quality industrial panel PC based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor. It features a 10.1” screen with a ten-point capacitive touch screen with 1280×800 pixel resolution and 400 NIT brightness.

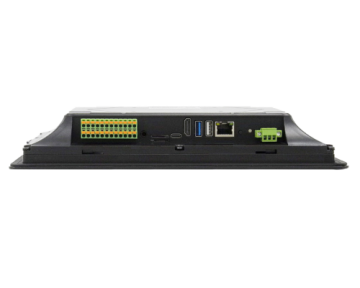

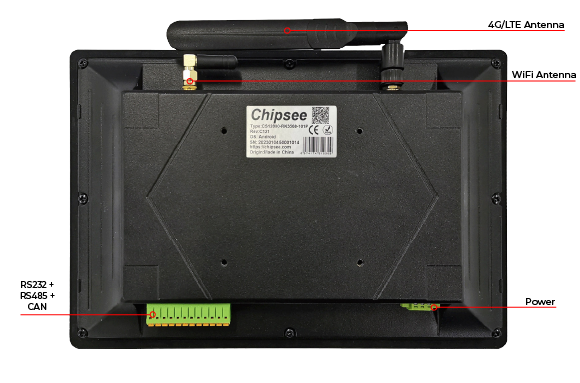

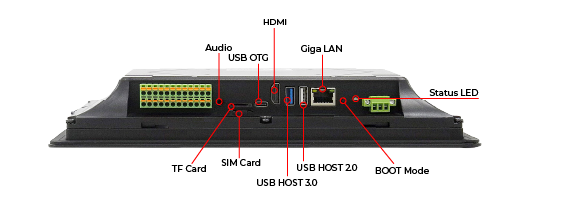

The PPC-A55-101 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, TF card, onboard audio, RTC with a backup battery, and power management.

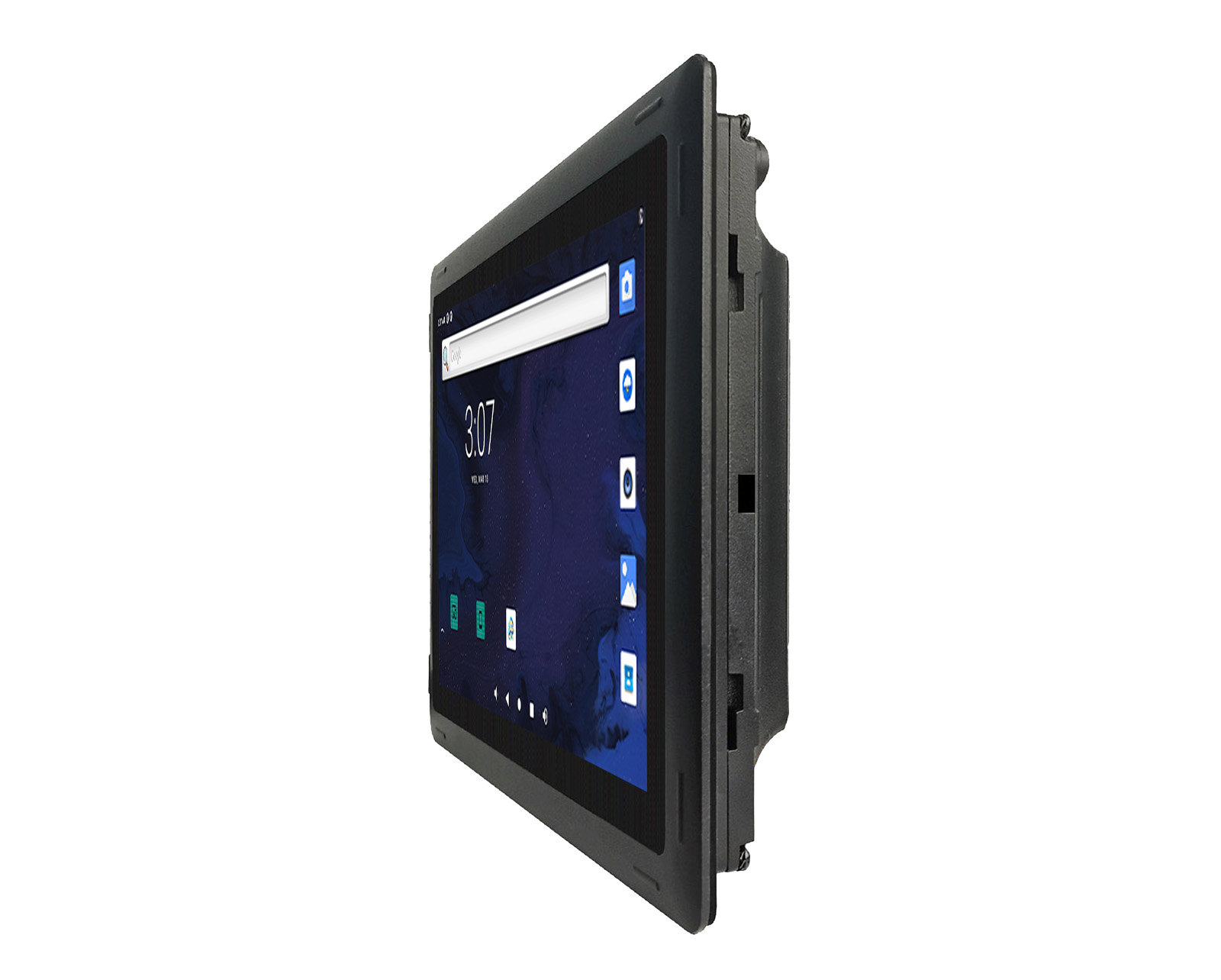

Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.
Hardware Features
The metal enclosure is available in two colours: black and grey.
Performances and reliability
The PPC-A55-156 Industrial Panel PC is based on the powerful Rockchip RK3568 chip – a high-range general-purpose SoC that integrates a quad-core Cortex®-A55 processor.
This chip supports various peripheral interfaces and has a built-in independent NPU. It supports Android 11 and Linux systems and is perfect for industrial customization markets such as IoT gateways, cloud terminals, NVR storage, industrial equipment, industrial control panels, industrial control boxes, etc.
Multiple Operating Systems Support
The PPC-A55-156 supports Android 11, Debian 11, and Buildroot Linux Qt.
The unit comes preinstalled with Debian 11, Buildroot Linux Qt 5.15 or Android 11. Our dedicated team of software engineers has expertly crafted all necessary drivers to ensure seamless hardware compatibility across widely-used development tools.
Tailored OS Solutions
Our team is ready to assist with custom pre-installation services for projects with specific operating system requirements. Please contact us to discuss your unique needs, and we will work closely with you to provide a tailored solution that aligns perfectly with your project’s specifications.
| Weight | 2300 g |
|---|---|
| Dimensions | 275.5 × 193.5 × 46 mm |
| Net weight | 1300 g |
| Form-factor | Panel |
| CPU | ARM: Rockchip RK3568 |
| CPU Frequency | Quad Cortex A55, 2.0GHz |
| DDR4 | 2GB |
| eMMC | 16GB |
| Storage | External TF card slot, and internal M.2 NVMe connector for SSD card |
| Display Size (inch.) | 10.1" |
| Resolution | 1280*800 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Yes |
| 4G | Optional |
| Ethernet | 1x RJ45, 1 Gbps |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| USB | 1x USB Type-C, 1 x USB 3.0 HOST, 1x USB 2.0 HOST |
| RTC | High Accuracy RTC, can work 1 week after power off |
| GPIO | 8 Channels, 4 Input, 4 Output |
| RS485 | 2x RS485 |
| RS232 | 4x RS232 |
| CAN | 2x CAN |
| OS | Android 11, Debian 11, Buildroot Linux Qt 5.15 |
| Power Input | 12~36V DC |
| Power Consumption | 9.6W |
| Current at 12V | 800mA Max at 12V |
| Working Temperature | -20°C ~ 70°C. |
| Mounting Method | Panel Mounting & VESA |
| GTIN | 6974174310811 |
