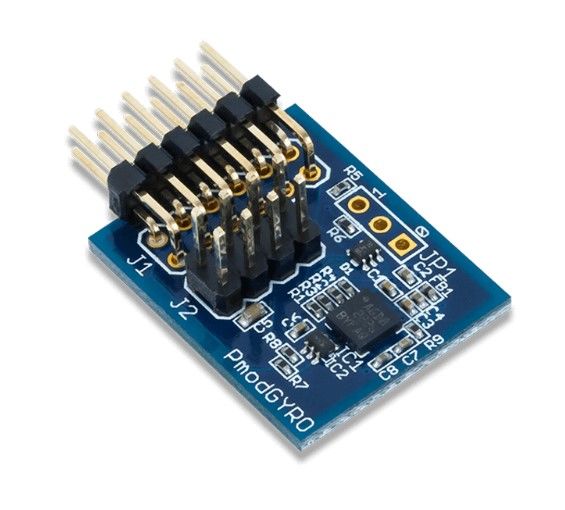

Pmod GYRO: 3-axis Digital Gyroscope
The Pmod GYRO is a 3-axis gyroscope powered by the ST Microelectronics L3G4200D.
By communicating with the chip through SPI or I2C, users may configure the module to report angular momentum at a resolution of up to 2000 dps at an output rate up to 800Hz.
Features
3-axis MEMS digital gyroscope with high shock survivability
Get angular velocity data with user selectable resolution (250/500/2000dps)
Two customizable interrupt pins
User configurable signal filtering
Power-down and Sleep modes

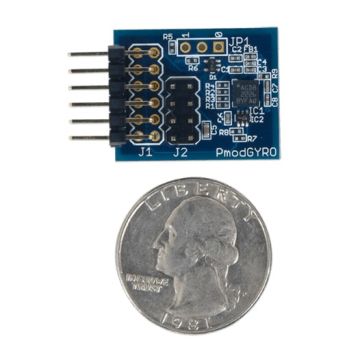

Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)
12-pin Pmod connector with SPI interface and additional I²C interface
Library and example code available in resource center
