Stok Kodu : 73.03.02.01
PmodAD2 - 4 kanal 12-bit ADC
851,04 TL
Pmod AD-2
PmodAD2 - 4 channel 12-bit A/D converter
|
IC: |
Analog Devices AD7991 4-Channel, 12-Bit ADC with I2C Compatible Interface |
Up to 4 analog to digital converter channels
Up to 12-bit resolution
I2C interface
On-board 2.048V Voltage Reference
Ability to choose the reference voltage
Ships with a 4-pin MTE cable
Up to 12-bit resolution
I2C interface
On-board 2.048V Voltage Reference
Ability to choose the reference voltage
Ships with a 4-pin MTE cable

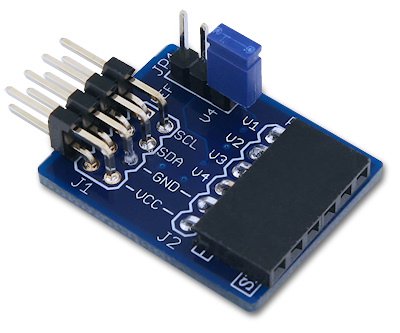

The PmodAD2 is an analog to digital converter module with up to 4 channels at 12-bit resolution powered by the Analog Devices AD7991. It uses an 8-pin connector that allows communication via I2C. The PmodAD2 also has a 6-pin connector that allows up to 4 analog inputs or up to 3 analog inputs and a voltage reference.
For information on connecting this product using TWI, Click here. This product is a type C device.
