Osiloskop SDS1102CML+ 100MHZ 2 KANAL 1 GSa/s

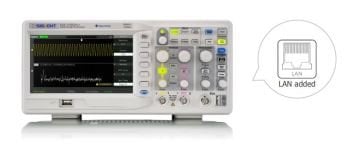

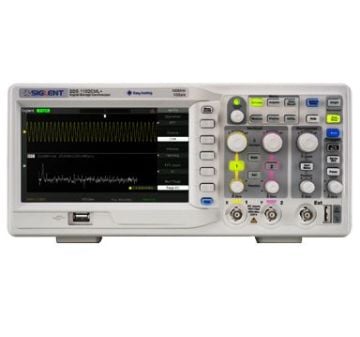

Siglent SDS1102CML+
100MHz 2 Ch Digital Storage Oscilloscope
with LAN interface
The SDS1102CML+ is a dual-channel 100 MHz universal digital oscilloscope. It includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1102CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
|
|
Bandwidth |
100MHz |
|
Channels |
2CH+1EXT |
|
Real time sampling rate |
1GSa/s |
|
Memory depth |
2Mpts |
|
Rise time |
< 3.5ns |
|
Input impedance |
1MΩ‖17pF |
|
Time base range |
2.5ns/div-50s/div |
|
Scan: 100ms-50s/div |
|
|
Vertical sensitivity |
2mV-10V/div |
|
Vertical resolution |
8bit |
|
Trigger source |
CH1, CH2, Ext, Ext/5, AC Line |
|
Trigger types |
Edge, Pulse, Video, Slope, Alternative |
|
Math Operation |
+, -, ×, ÷, FFT |
|
Digital filter |
High pass, Low pass, Band pass, Band Stop |
|
Max input voltage |
±400V (DC+AC Pk-Pk), CAT I, CAT II |
|
Internal storage |
2 groups of reference waveform, 20 groups of setting, 10 groups of waveform |
|
External storage |
Bitmap save, CSV save, Waveform save, Setting save |
|
Language |
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
|
Interface |
USB Host, USB Device, LAN, Pass/Fail |
|
Display |
7 inches(178mm) color TFT(800*480) LCD |
|
Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
