Stok Kodu : 020.03

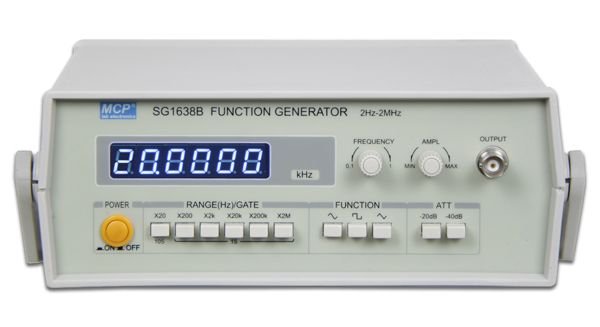

SG1638B Fonksiyon Üreteci 2Mhz 1 Kanal Analog Sinyal Jeneratörü
%8
4.965,24 TL
5.397,00 TL
SG1638B 2Mhz 1 Kanal Analog Sinyal Jeneratörü
Three waveforms: sine, triangle, square, 6 ranges of frequency, up to 2MHz
| Technical Data | SC1638B |
|---|---|
| Output frequency | 0.2Hz~2MHz |
| Output waveforms | Sine, Square, Triangle |
| Main output | |
| Output impedance | 50Ω±10% |
| Output amplitude | 220Vp-p (1MΩ Load); 210Vp-p (500Ω Load) |
| Output attenuation | 20dB/40dB |
| Attenuation accuracy | ±3% |
| Distortion factor | ≤2% (≤2100kHz) |
| Sine wave | |
| Frequency response | ±0.5dB (≤100kHz) ±1dB (>100kHz) |
| Square wave | |
| Rise or fall time | 100ns (5Vp-p 1MHz) |
| Triangle wave | |
| Linear | 98% (≤100kHz), 95% (>100kHz) |
| Power supply | 110~127 VAC±10%, 220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz |
| Dimension(W×H×D) | 225(W) ×105(H)×195(D)mm |
| Weight | 2kg |
