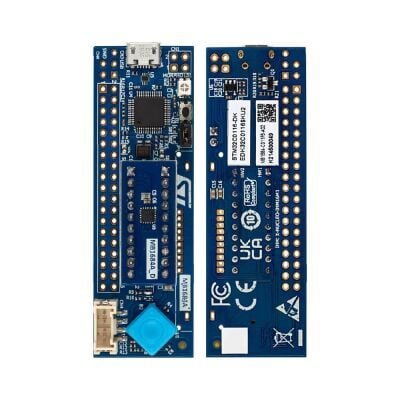

STM32C011F6 MCU Geliştirme Kiti

Discovery kit with STM32C011F6 MCU

The STM32C0116-DK Discovery kit helps to discover features of the STM32C0 Series microcontroller in a UFQFPN20 package. This Discovery kit features one UFQFPN20 to DIL20 module designed with the STM32C011F6 microcontroller and allows the user to develop and share applications. It includes an on-board ST-LINK/ V2-1 to debug and program the embedded STM32 microcontroller. The STM32C0116-DK Discovery kit is operated by plugging it into a PC through a standard USB Type-A or USB Type-C® to Micro-B cable.

STM32C011F6 MCU Teknik Özellikleri

• STM32C011F6 Arm® Cortex®‑M0+ core-based microcontroller with 32 Kbytes of Flash memory and 6 Kbytes of RAM, in a UFQFPN20 package
• User LED
• Reset push-button
• 5‑way joystick using a single ADC input pin
• Individual STM32 UFQFPN20 to DIL20 module
• Board connectors:
  • USB Micro-B
  • DIL20 socket
  • Dedicated LCD footprint
  • Grove (UART)
  • 2 x 10‑pin headers for MCU daughterboard
  • Extension connectors
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage and debug port
• Comprehensive free software libraries and examples available with the STM32Cube MCU Package
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
