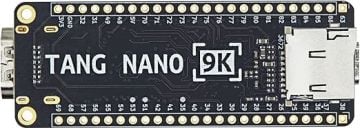

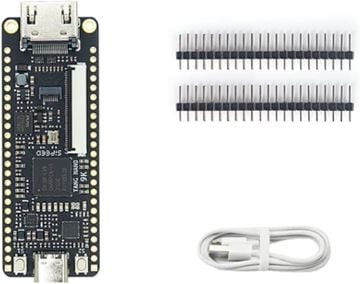

Tang Nano 9K FPGA Geliştirme Kartı GOWIN GW1NR-9 RISC-V HDMI

Introduction

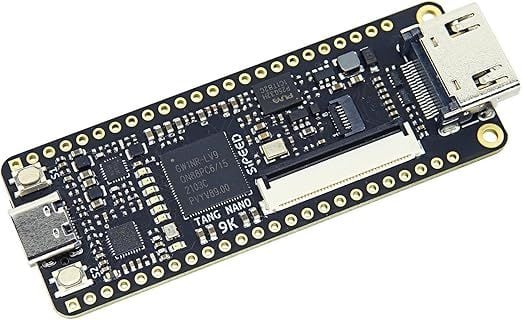

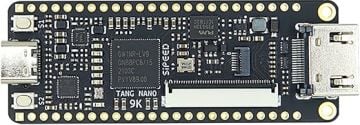

The Tang Nano 9K, powered by Gowin's GW1NR-9 FPGA chip, is a versatile and feature-rich development board. It features several often used connectors, including HDMI, RGB screen, and SPI screen interfaces, aswell as a 32Mbit SPI flash and six LEDs. It has 8640 LUT4 logic units, an onboard 27MHz clock and 2 PLLs meaning, as well as basic FPGA designs, it can also be used for full risc-v softcores such as PicoRV.

Comparison

Tang Nano 9K is the 5th product of Sipeed Tang series. Several Tang FPGA products are compared in the table below

Model	Tang Nano 1K	Tang Nano 4K	Tang Nano 9K
Appearance
Logic Units (LUT4)	1152	4608	8640
Hard core processor	/	Cortex m3	/
Crystal oscillator	27MHZ	27MHZ	27MHZ
Display interface	RGB screen interface	HDMI	HDMI, RGB screen interface, SPI screen interface
Camera	/	Support OV2640	/
External SPI FLASH	Reserved pads only	32Mbits SPI flash	32Mbits SPI flash
TF card slot	/	/	Yes
Debugger	Onboard USB-JTAG	Onboard USB-JTAG	Onboard USB-JTAG & USB-UART

Specifications

Indepth specifications of the tang nano 9K.

On-board Function block

Pinmap

Usage	FPGA	MCU	FPGA+MCU
Language	Verilog HDL/Verilog	C/C++	Verilog HDL/Verilog, C/C++
Introduction	verify HDL design	After flashing the softcore bitstream, this board can be used as a normal microcontroller unit	After flashing the softcore bitstream, it can be used as two chips
User	Beginner, FPGA developer	RISC-V developers, Cortex-M developers	Senior engineer

Attention and Best Practices

• Troubleshooting: If you encounter any issues, consult our Tang Questions page first.
• Avoid using JTAG, MODE0/1, and DONE pins unless necessary. For details, refer to SUG100-2.6E_Gowin Software User Guide.pdf.
• Static Electricity Precautions: Always discharge static electricity before handling the PCBA to prevent damage.
• GPIO Voltage Compliance: Ensure that the actual working voltage of GPIOs does not exceed their rated value as indicated in the schematic. Exceeding these limits can cause permanent damage to the PCBA.
• FPC Cable Connection: When connecting FPC flexible cables, ensure that the cable is fully inserted into its base without any offset.
• Avoid Short Circuits: Prevent liquids or metals from coming into contact with the component pads on the PCBA while it's operating, as this could cause a short circuit and damage the PCBA.
• Handling Multiplexed IO and HDMI Ports: Be aware that the HDMI IO ports are pulled up. When using IOs routed to pin headers, they may not operate as intended.
