Unit UTG2122B 16Bit 2 Kanal 120 MHz

Stok Kodu : UTG2122B

Unit UTG2122B 16Bit 2 Kanal 120 MHz

30.624,09 TL
Kategori
FONKSİYON JENERATÖRÜ
Barkod
UTG2122B
Fiyat
695,37 USD + KDV
GELİNCE HABER VER
Stok Sorunuz
Ürün Bilgisi
Ürün Bilgisi

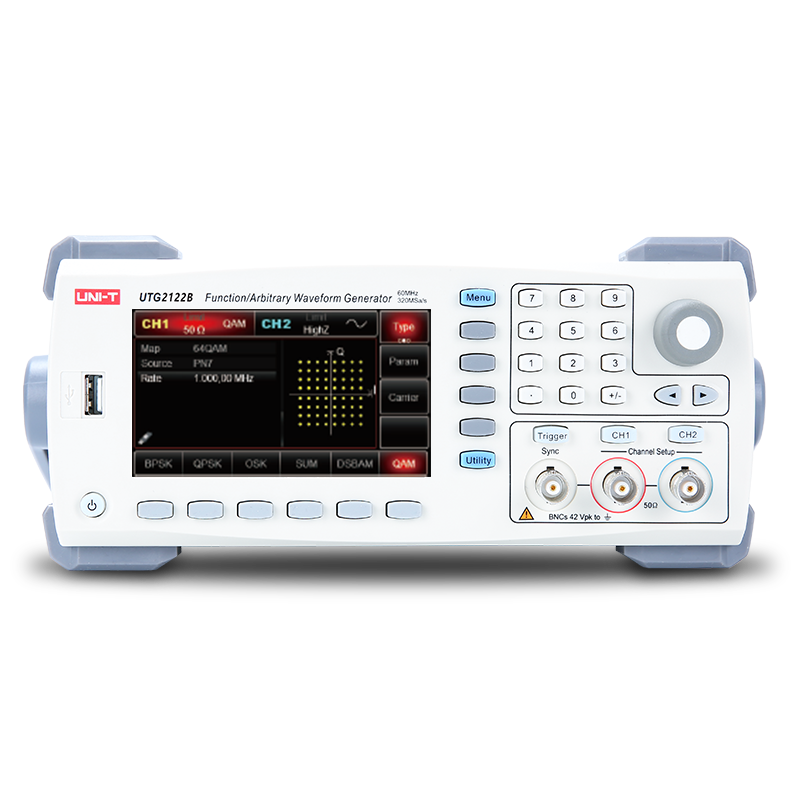

Unit UTG2122B 16Bit 2 Kanal 120 MHz


Engineers who require high signal fidelity in a reliable and capable waveform generation need look no further than the UTG2000B Series generators.



With frequencies up to 120MHz, 16bits Resolution, and arbitrary waveform length of up to 16Mpts, the UTG2000B reproduces any waveform with high fidelity and low jitier signals, which can meet the growing requirements of complex and extensive applications.



Friendly user interface, excellent industrial design and superior technical indicators are multi-purpose equipment to meet your current and future testing needs.




 120M maximum output frequency, multiple basic output waveforms

  • 120M maximum output frequency, Two-channel multiple basic waveforms can be selected: sine wave,square,ramp,pulse,harmonic, noise,DC,expression,arbitrary waveform



 Expression output

  • The expression supports 18 kinds of function mixed operations to find the value, which is meaningful The combination of column method to describe the output waveform.



 Multiple modulation functions

  • Multiple analog modulation and digital modulation functions, Modulation type: AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, QAM



Built-in up to 200 arbitrary waveforms

  • The UTG2000B series contains more than 160 different signal shapes and waveform options.



 Channel combination/channel coupling function

  • The channels are combined: and the basic waveform output of the two channels is superimposed. Channel coupling: When the frequency, amplitude or phase of one channel is changed, the frequency, amplitude or phase of the other channel will be automatically adjusted.



Sweep function/harmonic output

  • Scan types include linear, logarithmic. Harmonic function: built-in 16th harmonic output function
