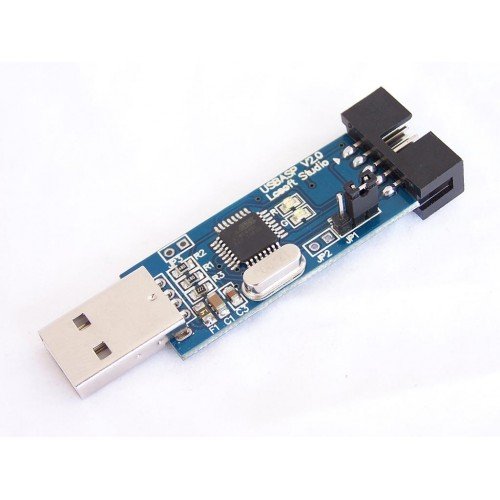

• Onboard ATMega8(L) Mcu.
• Overcurrent protection, Resettable 500 mA fuse for short-circuit prevention
• 3.3V and 5V power supply supported  ( Selection jumper (JP1) )
• Self program (firmware update) jumper (JP2)
• Clock Speed control Jumper (JP3)
• USB Type A connector for directly pluging in to PC USB port
• Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
• Supported OS: Windows 8, Windows 7, Works under multiple platforms. Linux, Mac OS X and Windows are tested.
• Programming speed is up to 5kBytes/sec.
• Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
• 10 pin ISP interface (conforms to standard ISP 10-pin pinout)
• Brand new ,mini size
• Support USB 1.0 or 2.0 interface
• Power and programmer status LEDs
• Progisp, Khazama, AVRDUDE, PonyProg support.
• Size: Approx  3.2 x 0.4 x 0.8 inches / 8.1 x 1.02 x 2.03cm

• AVRDUDE supports USBasp since version 5.2.
• BASCOM-AVR supports USBasp since version 1.11.9.6.
• eXtreme Burner – AVR is a Windows GUI Software for USBasp based USB AVR programmers.
• A command line light weight dfu-programmer can also be used
• USBASP Driver
• To easily install USB Driver (without requiring windows signature check) on Windows 10, and Windows 8 you can use Zadig tool. The detailed procedure can be seen here
• The latest Window Drivers are fully signed, so you can use them on Windows Vista and above without any issues. The driver will work on both 32 and 64 bit platforms.
  On Linux And Mac OS X no kernel driver is required, just use AVRdude and specify the correct port.

Supported microcontrollers

     The programmer will work with a wide variety of Atmel AVR microcontrollers including the Atmega8a and Atmega168a. A full list is available on the specifications tab.
The programmer will also work with a variety of software including

Mega Series

ATmega8, ATmega8A, ATmega8U2, ATmega8HVA, ATmega16, ATmega16A, ATmega16HVA, ATmega16HVB, ATmega16M1,
ATmega16U2, ATmega16U4, ATmega32, ATmega32A, ATmega32C1, ATmega32HVB, ATmega32M1, ATmega32U2, ATmega32U4,
ATmega32U6, ATmega48, ATmega48P, ATmega48PA, ATmega64, ATmega64A,ATmega64C1, ATmega64M1, ATmega88, ATmega88P,
ATmega88PA, ATmega103, ATmega128, ATmega128A, ATmega128RFA1, ATmega161,ATmega162, ATmega163, ATmega164P,
ATmega164PA, ATmega165, ATmega165P, ATmega168, ATmega168P, ATmega168PA, ATmega169, ATmega169P, ATmega323, ATmega324,
ATmega324PA, ATmega325, ATmega325P, ATmega328P, ATmega329, ATmega329P, ATmega406, ATmega640, ATmega644, ATmega644P,
ATmega644PA, ATmega645,  ATmega649, ATmega1280, ATmega1281, ATmega1284P, ATmega2560, ATmega2561, ATmega3250, ATmega3250P,
ATmega3290, ATmega3290P, ATmega6450, ATmega6490, ATmega8515, ATmega8535

Tiny Series

ATtiny10, ATtiny11, ATtiny12, ATtiny13, ATtiny13A, ATtiny15, ATtiny22, ATtiny24, ATtiny24A, ATtiny25,
ATtiny26, ATtiny28, ATtiny43U, ATtiny44, ATtiny44A, ATtiny45, ATtiny48, ATtiny84, ATtiny85, ATtiny88,
ATtiny167, ATtiny261, ATtiny261A, ATtiny461, ATtiny861, ATtiny861A, ATtiny2313, ATtiny2313A

Classic Series

Paket içeriği :

• 1 Adet USBASP
• 1 Adet 5x2 pin flat kablo 20cm
