Stok Kodu : 73.02.04.01

VmodCAM - Stereo Camera Module

9.221,49 TL
Kategori
Barkod
210-179
Fiyat
216,71 USD + KDV
VmodCAM
Stereo Kamera Modülü



IC:
2x Aptina MT9D112
Connector(s):
VHDCI


  • •Two independent Aptina MT9D112 2-megapixel CMOS digital image sensors
    •1600x1200 maximum resolution at 15 FPS
    •63mm inter-camera spacing (stereo baseline)
    •10-bit raw color depth
    •I2C control bus
    •Bayer, RGB, YCrCb output formats
    •Automatic exposure, gain, and white balance
    •Powerful image correction algorithms
    •Image scaling
    •Output FIFO
    •68-pin female VHDCI connector

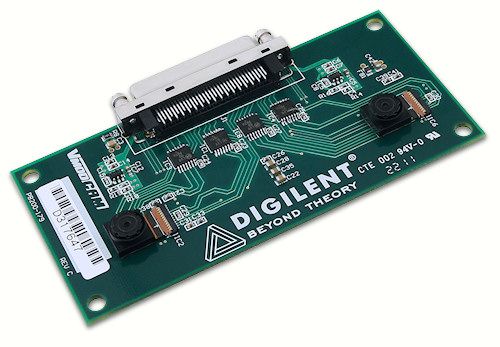

The VmodCAM board provides digital imaging capabilities for any Digilent FPGA system board with a VHDCI connector. It features two Aptina MT9D112 2-megapixel CMOS digital image sensors. The sensors can provide frame rates from 15 FPS upwards, depending on the resolution.
Its system-on-a-chip design integrates an image flow processor and enables selectable output formats, scaling, and special effects. The integrated PLL (phase-locked loop) and microprocessor offer a flexible serial control interface. The output data is sent on a parallel bus in processed YCrCb, RGB, or raw Bayer formats.
The two MT9D112 cameras can be controlled independently and can acquire two separate, simultaneous image feeds. They are controlled by a two-wire interface. Each camera has a 2 megapixel color sensor array in Bayer color filter arrangement. The sensor readout is 10-bit and supports skipping or binning rows/columns.
NOTE: To connect to a system board, this product requires a male-to-male VHDCI cable, which is not included.
