Stok Kodu : XE910-2G

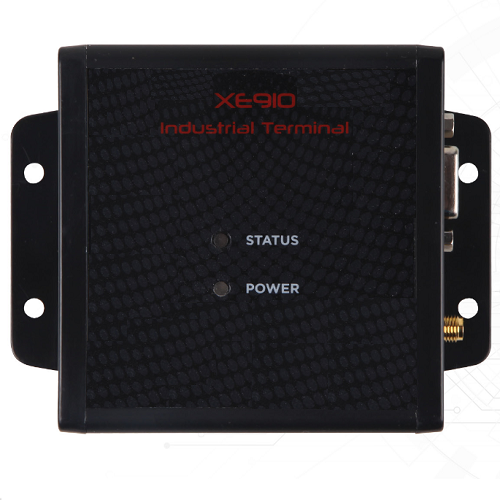

XE910-2G GSM/GPRS Terminal
3.191,40 TL
XE910-2G GSM/GPRS Terminal
Interfaces

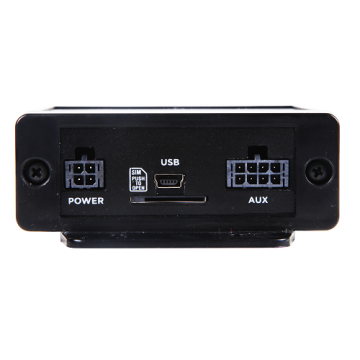

- Power Socket (PWR, GND, RESET)

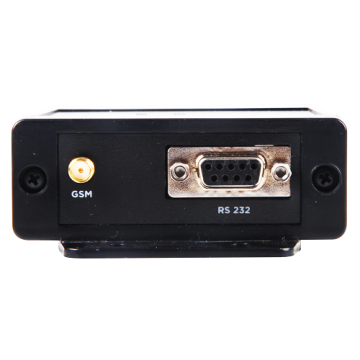

- D-Type 9-Pin RS232 Connector
- (RS-232 transceivers with integrated ESD protection)
- Mini USB Connector (ESD protection for USB 2.0 interfaces)
- 2×4 GPIO Socket
- RS485 – Transceiver with AutoDirection Control
- 2 Output (Relay Driver Max 12V @ 150mA)
- 2 Input (Optical isolator 9-24V DC)
- 1 Analog Input (0-5V DC)
- Cellular Antenna Connector (SMA-F 50Ohm)
- On board Push-Push Sim Card Holder
- 2 operating status LED’s
- Power / Status
Electrical & Sensitivity
- Supply voltage: 9–35VDC @ 1.2A min
- Battery: Li-Ion 3.7V 960mAh (Optional)
- Output power
- Class 4 (2 W, 33 dBm) @ GSM 850/900
- Class 1 (1 W, 30 dBm) @ GSM 1800/1900
- Cellular Sensitivity
- 107 dBm @ GSM 850/900 MHz
- 107 dBm @ DCS1800/PCS1900 MHz
Cellular Features
- 4 Bands GSM | GPRS : 850 / 900 / 1800 / 1900 MHz
- Quad Band GPRS class 10
- SIM Access Profile
- 3GPP release 4 compliant
- Control via AT commands according to
(3GPP TS27.005, 27.007 and customized)
Telit AT commands - Serial port multiplexer 3GPP TS27.010
- SIM application Tool Kits 3GPP TS 51.014
- Builtin UDP/TCP/FTP/SMTP stack
- Voice and SMS
- Standard and extended AT command set
- Jammer rejection
Software
- Python* versiyon: 2.7.2 application resources
- Python* script interpreter
(module takes the application code directly in the Python* language) - Memory: 2 MB of NV memory for the
user scripts and 2 MB RAM for the Python* engine usage AppZone application resources - Programming language: C
- IDE: Eclipse
- Dedicated File System: 5 MB
- Separate App. RAM Space: 2 MB
Data
- GPRS
- GPRS class 10
- Mobile station class B
- Coding scheme 1 to 4
- PBCCH support
- GERAN Feature Package 1 support (NACC, Extended TBF)
Mechanical / Environmental
- Dimensions 85 x 80 x 30 mm
- Weight: 140 grams (with battery)
- Extended temperature range: -40°C to +85°C (Operational)
