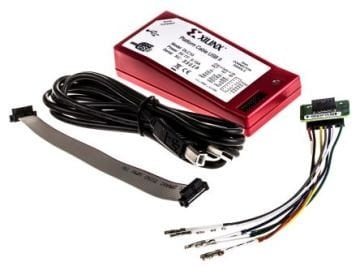

XILINX Platform Cable USB II (HW-USB-II)
Platform Cable USB II
P/N : HW-USB-II-G
The Platform Cable USB II provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of Xilinx FPGAs and programming of Xilinx PROM and CPLD devices. The Platform Cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, Platform Cable USB II is a cost effective tool for debugging embedded software and firmware when used with Xilinx applications such as the Embedded Development Kit and ChipScope™ Pro Analyzer.
Platform Cable USB II is an upgrade to and backwards compatible with Platform Cable USB. It has industry-leading performance and is compatible with Full Speed (USB 1.1) and Hi-Speed (USB 2.0) ports.
Key Features
- High-performance FPGA configuration and PROM/CPLD programming
- Includes innovative FPGA-based acceleration firmware encapsulated in a small form factor pod attached to the cable
- Supports JTAG and Slave-Serial programming topologies
- Firmware downloadable over cable
- Easy to use
- Fully integrated and optimized for use with Xilinx iMPACT software
- Intuitive multiple cable management from a single application
- Compatible with Windows and Linux operating systems
- Automatically senses and adapts to target I/O voltage
- Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V, and 1.5V
- Bus-powered USB device (no power supply required)
- Flyleads compatible
- Target power status LED
- Firmware updates are transparent to the user
- Reliable
- Backwards compatibility with Platform Cable USB, including Pb-Free (RoHS-compliant)
- USB Integrators Forum (USB-IF) certified
- CE and FCC compliant
- Leverages industry standards, including:
- JTAG Boundary-Scan IEEE1149.1
- SPI
- USB 2.0
- Compatible with Full-Speed and Hi-Speed USB ports
- Programs and configures all Xilinx devices
- Third-party PROM device programming support
- Directly programs selected Serial Peripheral Interface (SPI) flash memory devices
- Indirectly programs selected SPI or parallel flash memory devices via FPGA JTAG port
- Highly optimized for use with Xilinx design tools:
- ISE® Foundation™ Software
- Embedded Development Kit
- ChipScope Pro Analyzer
- System Generator for DSP
- Pb-Free (RoHS-compliant)
- Recommended for prototyping use only
Note: Xilinx iMPACT software is required for programming and configuration
