Stok Kodu : 73.02.03.03
XUP USB-JTAG Programming Cable
6.572,76 TL
XUP USB-JTAG Programming Cable
USB programming cable for all Xilinx devices
|
Connector(s): |
Micro USB Xilinx 14-pin JTAG connector |
The XUP-USB programming cable is compatible with Xilinx’s Platform Cable USB. It can directly program Xilinx FPGAs, CPLDs, and programming ROMs, and indirectly program SPI and parallel Flash ROMs with system voltages ranging from 1.5V to 5V. The cable is compatible with full-speed and high-speed USB ports, and is directly accessed from ISE, Chipscope, EDK, and other Xilinx CAD tools.

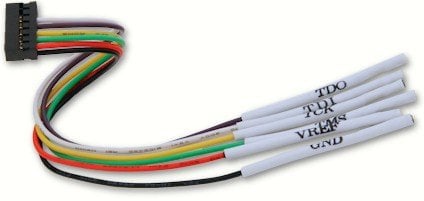

Ships with the XUP Fly Wire Assembly
NOTE: Xilinx iMPACT software is required for programming and configuration.
NOTE: Xilinx iMPACT software is required for programming and configuration.
