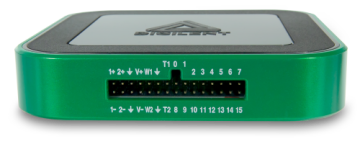

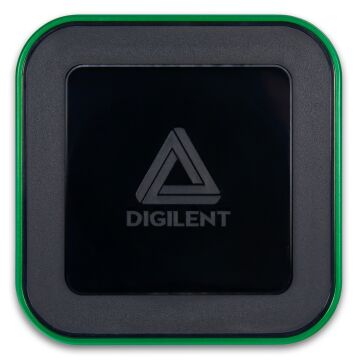

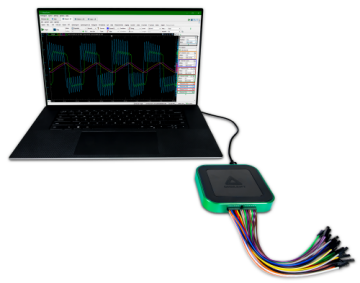

Analog Discovery 3

• Oscilloscope
• Waveform Generator
• Power Supplies
• Voltmeter
• Data Logger
• Logic Analyzer
• Pattern Generator
• Static I/O
• Spectrum Analyzer
• Network Analyzer
• Impedance Analyzers
• Curve Tracer
• Protocol Analyzer

Oscilloscope:

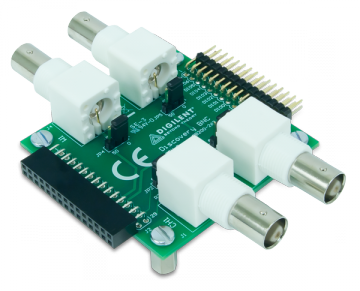

• Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with optional BNC Adapter
• User-configurable input filters and lock-in amplifier
• FFT, Spectrogram, Eye Diagram, XY Plot views, and more

Arbitrary Waveform Generator:

• Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
• Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more

Logic Analyzer and Pattern Generator:

• 16 digital I/O channels at up to 125 MS/s per channel
• Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
• SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more

Programmable Power Supplies:

• 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
• Up to 800 mA per channel when used with auxiliary power source

Additional software instruments including:

• Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
• Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
• Data logging, Voltmeter, in-app scripting
